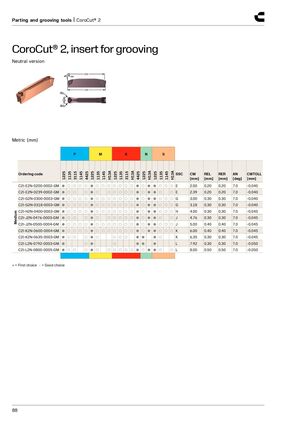

Пластины CoroCut® 2 для канавкообработки
Пластина для канавкообработки, нейтральное исполнение
Средняя обработка
| Артикул | Применение | SSC [мм] | CW [мм] | REL [мм] | RER [град] | AN [мм] | CWTOLL [мм] |
|---|---|---|---|---|---|---|---|
| C2I-E2N-0200-0002-GM | E | 2.00 | 0.20 | 0.20 | 7.0 | -0.040 | |
| C2I-E2N-0239-0002-GM | E | 2.39 | 0.20 | 0.20 | 7.0 | -0.040 | |
| C2I-G2N-0300-0003-GM | G | 3.00 | 0.30 | 0.30 | 7.0 | -0.040 | |
| C2I-G2N-0318-0003-GM | G | 3.18 | 0.30 | 0.30 | 7.0 | -0.040 | |
| C2I-H2N-0400-0003-GM | H | 4.00 | 0.30 | 0.30 | 7.0 | -0.045 | |
| C2I-J2N-0476-0003-GM | J | 4.76 | 0.30 | 0.30 | 7.0 | -0.045 | |
| C2I-J2N-0500-0004-GM | J | 5.00 | 0.40 | 0.40 | 7.0 | -0.045 | |
| C2I-K2N-0600-0004-GM | K | 6.00 | 0.40 | 0.40 | 7.0 | -0.045 | |
| C2I-K2N-0635-0003-GM | K | 6.35 | 0.30 | 0.30 | 7.0 | -0.045 | |
| C2I-L2N-0792-0003-GM | L | 7.92 | 0.30 | 0.30 | 7.0 | -0.050 | |
| C2I-L2N-0800-0005-GM | L | 8.00 | 0.50 | 0.50 | 7.0 | -0.050 |
● = Первый выбор ○ = Хороший выбор
