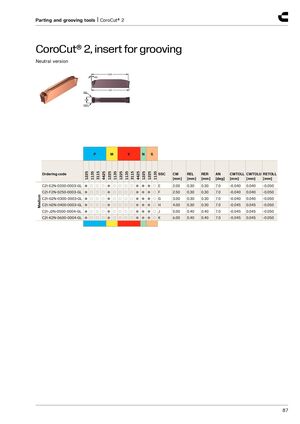

Пластины CoroCut® 2 для канавкообработки
Пластина для канавкообработки, нейтральное исполнение
Средняя обработка
| Артикул | Применение | SSC [мм] | CW [мм] | REL [мм] | RER [град] | AN [мм] | CWTOLL [мм] | CWTOLU [мм] | RETOLL [мм] |
|---|---|---|---|---|---|---|---|---|---|
| C2I-E2N-0200-0003-GL | E | 2.00 | 0.30 | 0.30 | 7.0 | -0.040 | 0.040 | -0.050 | |
| C2I-F2N-0250-0003-GL | F | 2.50 | 0.30 | 0.30 | 7.0 | -0.040 | 0.040 | -0.050 | |
| C2I-G2N-0300-0003-GL | G | 3.00 | 0.30 | 0.30 | 7.0 | -0.040 | 0.040 | -0.050 | |
| C2I-H2N-0400-0003-GL | H | 4.00 | 0.30 | 0.30 | 7.0 | -0.045 | 0.045 | -0.050 | |
| C2I-J2N-0500-0004-GL | J | 5.00 | 0.40 | 0.40 | 7.0 | -0.045 | 0.045 | -0.050 | |
| C2I-K2N-0600-0004-GL | K | 6.00 | 0.40 | 0.40 | 7.0 | -0.045 | 0.045 | -0.050 |
● = Первый выбор ○ = Хороший выбор
