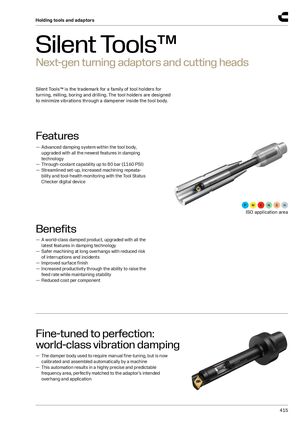

Holding tools and adaptors Silent Tools™ Next-gen turning adaptors and cutting heads Silent Tools™ is the trademark for a family of tool holders for turning, milling, boring and drilling. The tool holders are designed to minimize vibrations through a dampener inside the tool body. Features — Advanced damping system within the tool body, upgraded with all the newest features in damping technology — Through-coolant capability up to 80 bar (1160 PSI) — Streamlined set-up, increased machining repeata- bility and tool-health monitoring with the Tool Status Checker digital device ISO application area Benefits — A world-class damped product, upgraded with all the latest features in damping technology — Safer machining at long overhangs with reduced risk of interruptions and incidents — Improved surface finish — Increased productivity through the ability to raise the feed rate while maintaining stability — Reduced cost per component Fine-tuned to perfection: world-class vibration damping — The damper body used to require manual fine-tuning, but is now calibrated and assembled automatically by a machine — This automation results in a highly precise and predictable frequency area, perfectly matched to the adaptor’s intended overhang and application 415
