Инструменты расточки | Адаптеры расточки

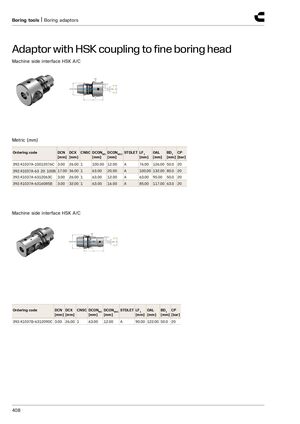

Адаптер с муфтой HSK для чистовой расточной головки
Интерфейс со стороны станка HSK A/C
Метрические размеры (мм)
| Артикул | DCN [мм] | DCX [мм] | CNSC | DCONMS [мм] | DCONWS 1 [мм] | STDLET | LF 1 [мм] | OAL [мм] | BD 1 [мм] | CP [бар] |
|---|---|---|---|---|---|---|---|---|---|---|
| 392.41037A-10012076C | 3.00 | 26.00 | 1 | 100.00 | 12.00 | A | 76.00 | 126.00 | 50.0 | 20 |
| 392.41037A-6320100B | 17.00 | 36.00 | 1 | 63.00 | 20.00 | A | 100.00 | 132.00 | 80.0 | 20 |
| 392.41037A-6312063C | 3.00 | 26.00 | 1 | 63.00 | 12.00 | A | 63.00 | 95.00 | 50.0 | 20 |
| 392.41037A-6316085B | 3.00 | 32.00 | 1 | 63.00 | 16.00 | A | 85.00 | 117.00 | 63.0 | 20 |
Интерфейс со стороны станка HSK A/C
| Артикул | DCN [мм] | DCX [мм] | CNSC | DCONMS [мм] | DCONWS 1 [мм] | STDLET | LF 1 [мм] | OAL [мм] | BD 1 [мм] | CP [бар] |
|---|---|---|---|---|---|---|---|---|---|---|
| 392.41037B-6312090C | 3.00 | 26.00 | 1 | 63.00 | 12.00 | A | 90.00 | 122.00 | 50.0 | 20 |
