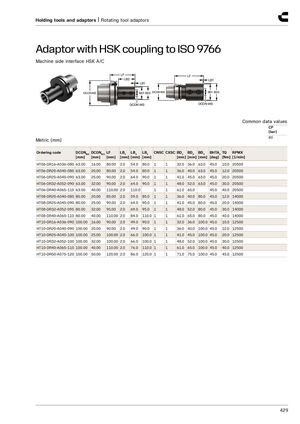

Держатели инструмента и адаптеры | Адаптеры для вращающихся инструментов
Адаптер с муфтой HSK к ISO 9766
Интерфейс со стороны станка HSK A/C
Размеры в миллиметрах
| Артикул | DCONMS [мм] | DCONWS [мм] | LF [мм] | LB 1 [мм] | LB 2 [мм] | LB 3 [мм] | CNSC | CXSC | BD 1 [мм] | BD 2 [мм] | BD 3 [мм] | BHTA 1 [град] | TQ [Нм] | RPMX [об/мин] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HT06-DR16-A036-080 | 63,00 | 16,00 | 80,00 | 2,0 | 54,0 | 80,0 | 1 | 1 | 32,0 | 36,0 | 63,0 | 45,0 | 10,0 | 20500 |
| HT06-DR20-A040-080 | 63,00 | 20,00 | 80,00 | 2,0 | 54,0 | 80,0 | 1 | 1 | 36,0 | 40,0 | 63,0 | 45,0 | 12,0 | 20500 |
| HT06-DR25-A045-090 | 63,00 | 25,00 | 90,00 | 2,0 | 64,0 | 90,0 | 1 | 1 | 41,0 | 45,0 | 63,0 | 45,0 | 20,0 | 20500 |
| HT06-DR32-A052-090 | 63,00 | 32,00 | 90,00 | 2,0 | 64,0 | 90,0 | 1 | 1 | 48,0 | 52,0 | 63,0 | 45,0 | 30,0 | 20500 |
| HT06-DR40-A065-110 | 63,00 | 40,00 | 110,00 | 2,0 | 110,0 | 1 | 1 | 61,0 | 65,0 | 45,0 | 40,0 | 20500 | ||
| HT08-DR20-A040-085 | 80,00 | 20,00 | 85,00 | 2,0 | 59,0 | 85,0 | 1 | 1 | 36,0 | 40,0 | 80,0 | 45,0 | 12,0 | 14000 |
| HT08-DR25-A045-090 | 80,00 | 25,00 | 90,00 | 2,0 | 64,0 | 90,0 | 1 | 1 | 41,0 | 45,0 | 80,0 | 45,0 | 20,0 | 14000 |
| HT08-DR32-A052-095 | 80,00 | 32,00 | 95,00 | 2,0 | 69,0 | 95,0 | 1 | 1 | 48,0 | 52,0 | 80,0 | 45,0 | 30,0 | 14000 |
| HT08-DR40-A065-110 | 80,00 | 40,00 | 110,00 | 2,0 | 84,0 | 110,0 | 1 | 1 | 61,0 | 65,0 | 80,0 | 45,0 | 40,0 | 14000 |
| HT10-DR16-A036-090 | 100,00 | 16,00 | 90,00 | 2,0 | 49,0 | 90,0 | 1 | 1 | 32,0 | 36,0 | 100,0 | 45,0 | 10,0 | 12500 |
| HT10-DR20-A040-090 | 100,00 | 20,00 | 90,00 | 2,0 | 49,0 | 90,0 | 1 | 1 | 36,0 | 40,0 | 100,0 | 45,0 | 12,0 | 12500 |
| HT10-DR25-A045-100 | 100,00 | 25,00 | 100,00 | 2,0 | 66,0 | 100,0 | 1 | 1 | 41,0 | 45,0 | 100,0 | 45,0 | 20,0 | 12500 |
| HT10-DR32-A052-100 | 100,00 | 32,00 | 100,00 | 2,0 | 66,0 | 100,0 | 1 | 1 | 48,0 | 52,0 | 100,0 | 45,0 | 30,0 | 12500 |
| HT10-DR40-A065-110 | 100,00 | 40,00 | 110,00 | 2,0 | 76,0 | 110,0 | 1 | 1 | 61,0 | 65,0 | 100,0 | 45,0 | 40,0 | 12500 |
| HT10-DR50-A075-120 | 100,00 | 50,00 | 120,00 | 2,0 | 86,0 | 120,0 | 1 | 1 | 71,0 | 75,0 | 100,0 | 45,0 | 45,0 | 12500 |
Общие характеристики: CP [бар] = 80
