Фрезерные инструменты | Плечевые фрезы

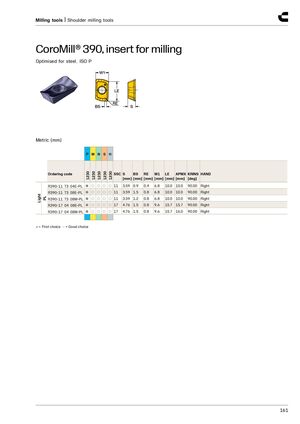

CoroMill® 390, пластина для фрезерования
Оптимизирована для стали, ISO P
Легкий режим PL
Метрические размеры (мм)
| Артикул | Выбор | S (мм) | BS (мм) | RE (мм) | W1 (мм) | LE (мм) | APMX (мм) | KRINS (град) | Направление |
|---|---|---|---|---|---|---|---|---|---|
| R390-11 T3 04E-PL | ● (Первый выбор) | 3.59 | 0.9 | 0.4 | 6.8 | 10.0 | 10.0 | 90.00 | Правое вращение |
| R390-11 T3 08E-PL | ● (Первый выбор) | 3.59 | 1.5 | 0.8 | 6.8 | 10.0 | 10.0 | 90.00 | Правое вращение |
| R390-11 T3 08M-PL | ● (Первый выбор) | 3.59 | 1.2 | 0.8 | 6.8 | 10.0 | 10.0 | 90.00 | Правое вращение |
| R390-17 04 08E-PL | ● (Первый выбор) | 4.76 | 1.5 | 0.8 | 9.6 | 15.7 | 15.7 | 90.00 | Правое вращение |
| R390-17 04 08M-PL | ● (Первый выбор) | 4.76 | 1.5 | 0.8 | 9.6 | 15.7 | 16.0 | 90.00 | Правое вращение |
