Инструменты расточки | Внешние инструменты расточки

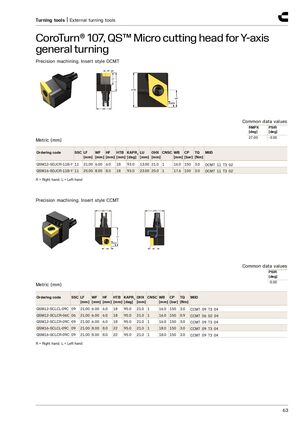

CoroTurn® 107, микрорезец QS™ для обработки оси Y общей расточки
Прецизионная обработка. Пластина стиля DCMT
| Общие значения параметров | |
|---|---|
| RMPX [градус] | PSIR [градус] |
| 27.00 | -3.00 |
Метрическая система (мм)
| Артикул заказа | SSC | LF [мм] | WF [мм] | HF [мм] | HTB [мм] | KAPR 1 [градус] | LU [мм] | OHX [мм] | CNSC [бар] | WB [мм] | CP | TQ [Нм] | MIID | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| QSM12-SDJCR-11B-Y | 11 | 21.00 | 6.00 | 6.0 | 18 | 93.0 | — | 13.00 | 21.0 | 1 | 16.0 | 150 | 3.0 | DCMT 11 T3 02 |
| QSM16-SDJCR-11B-Y | 11 | 25.00 | 8.00 | 8.0 | 18 | 93.0 | — | 23.00 | 25.0 | 1 | 17.6 | 150 | 3.0 | DCMT 11 T3 02 |
П = правое вращение, Л = левое вращение
Прецизионная обработка. Пластина стиля CCMT
| Общие значения параметров |
|---|
| PSIR [градус] |
| -5.00 |
Метрическая система (мм)
| Артикул заказа | SSC | LF [мм] | WF [мм] | HF [мм] | HTB [мм] | KAPR 1 [градус] | OHX [мм] | CNSC [бар] | WB [мм] | CP | TQ [Нм] | MIID | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| QSM12-SCLCL-09C | 09 | 21.00 | 6.00 | 6.0 | 18 | 95.0 | — | 21.0 | 1 | 16.0 | 150 | 3.0 | CCMT 09 T3 04 |
| QSM12-SCLCR-06C | 06 | 21.00 | 6.00 | 6.0 | 18 | 95.0 | — | 21.0 | 1 | 16.0 | 150 | 0.9 | CCMT 06 02 04 |
| QSM12-SCLCR-09C | 09 | 21.00 | 6.00 | 6.0 | 18 | 95.0 | — | 21.0 | 1 | 16.0 | 150 | 3.0 | CCMT 09 T3 04 |
| QSM16-SCLCL-09C | 09 | 21.00 | 8.00 | 8.0 | 22 | 95.0 | — | 21.0 | 1 | 18.0 | 150 | 3.0 | CCMT 09 T3 04 |
| QSM16-SCLCR-09C | 09 | 21.00 | 8.00 | 8.0 | 22 | 95.0 | — | 21.0 | 1 | 18.0 | 150 | 3.0 | CCMT 09 T3 04 |
П = правое вращение, Л = левое вращение
