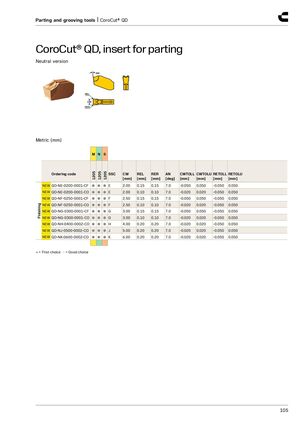

Parting and grooving tools | CoroCut® QD CoroCut® QD, insert for parting Neutral version Metric (mm) M N S 1205 1205 1205 Ordering code SSC CW REL RER AN CWTOLL CWTOLU RETOLL RETOLU [mm] [mm] [mm] [deg] [mm] [mm] [mm] [mm] NEW QD-NE-0200-0001-CF ●●●E 2.00 0.15 0.15 7.0 -0.050 0.050 -0.050 0.050 NEW QD-NE-0200-0001-CO ●●●E 2.00 0.10 0.10 7.0 -0.020 0.020 -0.050 0.050 NEW QD-NF-0250-0001-CF ● ● ● F 2.50 0.15 0.15 7.0 -0.050 0.050 -0.050 0.050 NEW QD-NF-0250-0001-CO ● ● ● F 2.50 0.10 0.10 7.0 -0.020 0.020 -0.050 0.050 Finishing NEW QD-NG-0300-0001-CF ● ● ● G 3.00 0.15 0.15 7.0 -0.050 0.050 -0.050 0.050 NEW QD-NG-0300-0001-CO ● ● ● G 3.00 0.10 0.10 7.0 -0.020 0.020 -0.050 0.050 NEW QD-NH-0400-0002-CO ● ● ● H 4.00 0.20 0.20 7.0 -0.020 0.020 -0.050 0.050 NEW QD-NJ-0500-0002-CO ● ● ● J 5.00 0.20 0.20 7.0 -0.020 0.020 -0.050 0.050 NEW QD-NK-0600-0002-CO ● ● ● K 6.00 0.20 0.20 7.0 -0.020 0.020 -0.050 0.050 ● = First choice ○ = Good choice 105
