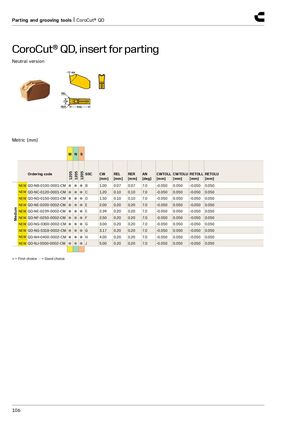

Инструменты отрезки и нарезания канавок | CoroCut® QD
CoroCut® QD, пластина для отрезки
Нейтральная версия. Средняя обработка
| Артикул | SSC | CW [мм] | REL [мм] | RER [мм] | AN [град] | CWTOLL [мм] | CWTOLU [мм] | RETOLL [мм] | RETOLU [мм] |
|---|---|---|---|---|---|---|---|---|---|
| NEW QD-NB-0100-0001-CM | B | 1.00 | 0.07 | 0.07 | 7.0 | -0.050 | 0.050 | -0.050 | 0.050 |
| NEW QD-NC-0120-0001-CM | C | 1.20 | 0.10 | 0.10 | 7.0 | -0.050 | 0.050 | -0.050 | 0.050 |
| NEW QD-ND-0150-0001-CM | D | 1.50 | 0.10 | 0.10 | 7.0 | -0.050 | 0.050 | -0.050 | 0.050 |
| NEW QD-NE-0200-0002-CM | E | 2.00 | 0.20 | 0.20 | 7.0 | -0.050 | 0.050 | -0.050 | 0.050 |
| NEW QD-NE-0239-0002-CM | E | 2.39 | 0.20 | 0.20 | 7.0 | -0.050 | 0.050 | -0.050 | 0.050 |
| NEW QD-NF-0250-0002-CM | F | 2.50 | 0.20 | 0.20 | 7.0 | -0.050 | 0.050 | -0.050 | 0.050 |
| NEW QD-NG-0300-0002-CM | G | 3.00 | 0.20 | 0.20 | 7.0 | -0.050 | 0.050 | -0.050 | 0.050 |
| NEW QD-NG-0318-0002-CM | G | 3.17 | 0.20 | 0.20 | 7.0 | -0.050 | 0.050 | -0.050 | 0.050 |
| NEW QD-NH-0400-0002-CM | H | 4.00 | 0.20 | 0.20 | 7.0 | -0.050 | 0.050 | -0.050 | 0.050 |
| NEW QD-NJ-0500-0002-CM | J | 5.00 | 0.20 | 0.20 | 7.0 | -0.050 | 0.050 | -0.050 | 0.050 |
● = Первый выбор ○ = Хороший выбор
