Инструменты фрезерования | Инструменты профильного фрезерования

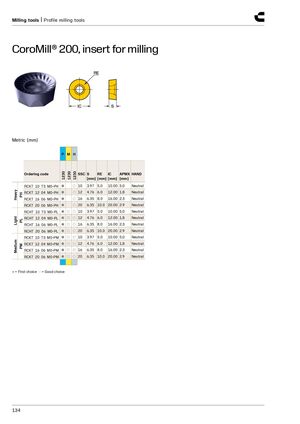

CoroMill® 200, пластина для фрезерования
Метрические размеры (мм)
| Код заказа | SSC | S [мм] | RE [мм] | IC [мм] | APMX [мм] | HAND |
|---|---|---|---|---|---|---|
| Тяжелая (PH) | ||||||
| RCKT 10 T3 M0-PH | ● | 3.97 | 5.0 | 10.00 | 5.0 | Нейтральная |
| RCKT 12 04 M0-PH | ● | 4.76 | 6.0 | 12.00 | 1.8 | Нейтральная |
| RCKT 16 06 M0-PH | ● | 6.35 | 8.0 | 16.00 | 2.3 | Нейтральная |
| RCKT 20 06 M0-PH | ● | 6.35 | 10.0 | 20.00 | 2.9 | Нейтральная |
| Легкая (PL) | ||||||
| RCHT 10 T3 M0-PL | ● | 3.97 | 5.0 | 10.00 | 5.0 | Нейтральная |
| RCHT 12 04 M0-PL | ● | 4.76 | 6.0 | 12.00 | 1.8 | Нейтральная |
| RCHT 16 06 M0-PL | ● | 6.35 | 8.0 | 16.00 | 2.3 | Нейтральная |
| RCHT 20 06 M0-PL | ● | 6.35 | 10.0 | 20.00 | 2.9 | Нейтральная |
| Средняя (PM) | ||||||
| RCKT 10 T3 M0-PM | ● | 3.97 | 5.0 | 10.00 | 5.0 | Нейтральная |
| RCKT 12 04 M0-PM | ● | 4.76 | 6.0 | 12.00 | 1.8 | Нейтральная |
| RCKT 16 06 M0-PM | ● | 6.35 | 8.0 | 16.00 | 2.3 | Нейтральная |
| RCKT 20 06 M0-PM | ● | 6.35 | 10.0 | 20.00 | 2.9 | Нейтральная |
● = Первый выбор ○ = Хороший выбор
