Инструменты фрезерования | Инструменты профильного фрезерования

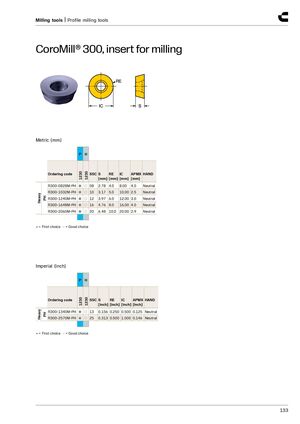

CoroMill® 300, пластина для фрезерования
Метрические размеры (мм)
| Код заказа | SSC | S [мм] | RE [мм] | IC [мм] | APMX [мм] | HAND |
|---|---|---|---|---|---|---|
| R300-0828M-PH | ● | 2.78 | 4.0 | 8.00 | 4.0 | Нейтральная |
| R300-1032M-PH | ● | 3.17 | 5.0 | 10.00 | 2.5 | Нейтральная |
| R300-1240M-PH | ● | 3.97 | 6.0 | 12.00 | 3.0 | Нейтральная |
| R300-1648M-PH | ● | 4.76 | 8.0 | 16.00 | 4.0 | Нейтральная |
| R300-2060M-PH | ● | 6.48 | 10.0 | 20.00 | 2.9 | Нейтральная |
● = Первый выбор ○ = Хороший выбор
Дюймовые размеры (дюймы)
| Код заказа | SSC | S [дюйм] | RE [дюйм] | IC [дюйм] | APMX [дюйм] | HAND |
|---|---|---|---|---|---|---|
| R300-1340M-PH | ● | 0.156 | 0.250 | 0.500 | 0.125 | Нейтральная |
| R300-2570M-PH | ● | 0.313 | 0.500 | 1.000 | 0.146 | Нейтральная |
● = Первый выбор ○ = Хороший выбор
