Резцы | Сменные пластины для точения

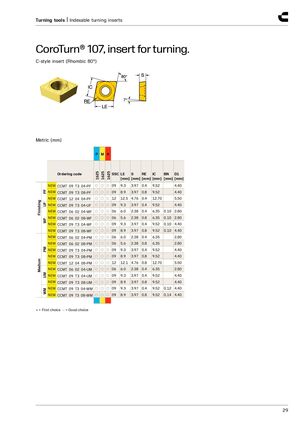

CoroTurn® 107, пластина для точения
Пластина типа C (ромб 80°)
Метрическая система (мм)
Финишная обработка
| Код заказа | P | M | K | SSC | LE | S | RE | IC | BN | D1 |
|---|---|---|---|---|---|---|---|---|---|---|
| 1625 | 1625 | 1625 | ||||||||
| NEW CCMT 09 T3 04-PF | ○ | ○ | ○ | 09 | 9.3 | 3.97 | 0.4 | 9.52 | 4.40 | |
| NEW CCMT 09 T3 08-PF | ○ | ○ | ○ | 09 | 8.9 | 3.97 | 0.8 | 9.52 | 4.40 | |
| NEW CCMT 12 04 04-PF | ○ | ○ | ○ | 12 | 12.5 | 4.76 | 0.4 | 12.70 | 5.50 | |
| NEW CCMT 09 T3 04-UF | ○ | ○ | ○ | 09 | 9.3 | 3.97 | 0.4 | 9.52 | 4.40 | |
| NEW CCMT 06 02 04-WF | ○ | ○ | ○ | 06 | 6.0 | 2.38 | 0.4 | 6.35 | 0.10 | 2.80 |
| NEW CCMT 06 02 08-WF | ○ | ○ | ○ | 06 | 5.6 | 2.38 | 0.8 | 6.35 | 0.10 | 2.80 |
| NEW CCMT 09 T3 04-WF | ○ | ○ | ○ | 09 | 9.3 | 3.97 | 0.4 | 9.52 | 0.10 | 4.40 |
| NEW CCMT 09 T3 08-WF | ○ | ○ | ○ | 09 | 8.9 | 3.97 | 0.8 | 9.52 | 0.10 | 4.40 |
Средний
| Код заказа | P | M | K | SSC | LE | S | RE | IC | BN | D1 |
|---|---|---|---|---|---|---|---|---|---|---|
| 1625 | 1625 | 1625 | ||||||||
| NEW CCMT 06 02 04-PM | ○ | ○ | ○ | 06 | 6.0 | 2.38 | 0.4 | 6.35 | 2.80 | |
| NEW CCMT 06 02 08-PM | ○ | ○ | ○ | 06 | 5.6 | 2.38 | 0.8 | 6.35 | 2.80 | |
| NEW CCMT 09 T3 04-PM | ○ | ○ | ○ | 09 | 9.3 | 3.97 | 0.4 | 9.52 | 4.40 | |
| NEW CCMT 09 T3 08-PM | ○ | ○ | ○ | 09 | 8.9 | 3.97 | 0.8 | 9.52 | 4.40 | |
| NEW CCMT 12 04 08-PM | ○ | ○ | ○ | 12 | 12.1 | 4.76 | 0.8 | 12.70 | 5.50 | |
| NEW CCMT 06 02 04-UM | ○ | ○ | ○ | 06 | 6.0 | 2.38 | 0.4 | 6.35 | 2.80 | |
| NEW CCMT 09 T3 04-UM | ○ | ○ | ○ | 09 | 9.3 | 3.97 | 0.4 | 9.52 | 4.40 | |
| NEW CCMT 09 T3 08-UM | ○ | ○ | ○ | 09 | 8.9 | 3.97 | 0.8 | 9.52 | 4.40 | |
| NEW CCMT 09 T3 04-WM | ○ | ○ | ○ | 09 | 9.3 | 3.97 | 0.4 | 9.52 | 0.12 | 4.40 |
| NEW CCMT 09 T3 08-WM | ○ | ○ | ○ | 09 | 8.9 | 3.97 | 0.8 | 9.52 | 0.14 | 4.40 |
● = Первый выбор ○ = Хороший выбор
