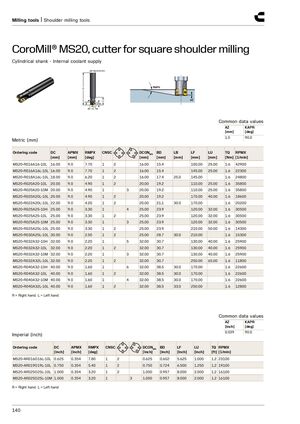

Инструменты фрезерования | Инструменты фрезерования торцевых уступов
CoroMill® MS20, фреза для квадратного торцевого уступа
Цилиндрический хвостовик — внутренняя подача СОЖ
Метрические размеры (мм)
| Код заказа | DC [мм] | APMX [мм] | RMPX [град] | CNSC | DCONMS [мм] | BD [мм] | LB [мм] | LF [мм] | LU [мм] | TQ [Нм] | RPMX [1/мин] |
|---|---|---|---|---|---|---|---|---|---|---|---|
| MS20-R016A16-10L | 16.00 | 9.0 | 7.70 | 1 + 2 | 16.00 | 15.4 | — | 100.00 | 25.00 | 1.6 | 42900 |
| MS20-R016A16L-10L | 16.00 | 9.0 | 7.70 | 1 + 2 | 16.00 | 15.4 | — | 145.00 | 25.00 | 1.6 | 22300 |
| MS20-R018A16L-10L | 18.00 | 9.0 | 6.20 | 1 + 2 | 16.00 | 17.4 | 25.0 | 145.00 | — | 1.6 | 24800 |
| MS20-R020A20-10L | 20.00 | 9.0 | 4.90 | 1 + 2 | 20.00 | 19.2 | — | 110.00 | 25.00 | 1.6 | 35800 |
| MS20-R020A20-10M | 20.00 | 9.0 | 4.90 | 1 + 3 | 20.00 | 19.2 | — | 110.00 | 25.00 | 1.6 | 35800 |
| MS20-R020A20L-10L | 20.00 | 9.0 | 4.90 | 1 + 2 | 20.00 | 19.2 | — | 170.00 | 40.00 | 1.6 | 18600 |
| MS20-R022A20L-10L | 22.00 | 9.0 | 4.20 | 1 + 2 | 20.00 | 21.1 | 30.0 | 170.00 | — | 1.6 | 20200 |
| MS20-R025A25-10H | 25.00 | 9.0 | 3.30 | 1 + 4 | 25.00 | 23.9 | — | 120.00 | 32.00 | 1.6 | 30500 |
| MS20-R025A25-10L | 25.00 | 9.0 | 3.30 | 1 + 2 | 25.00 | 23.9 | — | 120.00 | 32.00 | 1.6 | 30500 |
| MS20-R025A25-10M | 25.00 | 9.0 | 3.30 | 1 + 3 | 25.00 | 23.9 | — | 120.00 | 32.00 | 1.6 | 30500 |
| MS20-R025A25L-10L | 25.00 | 9.0 | 3.30 | 1 + 2 | 25.00 | 23.9 | — | 210.00 | 50.00 | 1.6 | 14300 |
| MS20-R030A25L-10L | 30.00 | 9.0 | 2.50 | 1 + 2 | 25.00 | 28.7 | 30.0 | 210.00 | — | 1.6 | 15300 |
| MS20-R032A32-10H | 32.00 | 9.0 | 2.20 | 1 + 5 | 32.00 | 30.7 | — | 130.00 | 40.00 | 1.6 | 25900 |
| MS20-R032A32-10L | 32.00 | 9.0 | 2.20 | 1 + 2 | 32.00 | 30.7 | — | 130.00 | 40.00 | 1.6 | 25900 |
| MS20-R032A32-10M | 32.00 | 9.0 | 2.20 | 1 + 3 | 32.00 | 30.7 | — | 130.00 | 40.00 | 1.6 | 25900 |
| MS20-R032A32L-10L | 32.00 | 9.0 | 2.20 | 1 + 2 | 32.00 | 30.7 | — | 250.00 | 65.00 | 1.6 | 11800 |
| MS20-R040A32-10H | 40.00 | 9.0 | 1.60 | 1 + 6 | 32.00 | 38.5 | 30.0 | 170.00 | — | 1.6 | 22600 |
| MS20-R040A32-10L | 40.00 | 9.0 | 1.60 | 1 + 2 | 32.00 | 38.5 | 30.0 | 170.00 | — | 1.6 | 22600 |
| MS20-R040A32-10M | 40.00 | 9.0 | 1.60 | 1 + 4 | 32.00 | 38.5 | 30.0 | 170.00 | — | 1.6 | 22600 |
| MS20-R040A32L-10L | 40.00 | 9.0 | 1.60 | 1 + 2 | 32.00 | 38.5 | 33.0 | 250.00 | — | 1.6 | 12800 |
R = Правая, L = Левая
Дюймовые размеры (дюймы)
| Код заказа | DC [дюйм] | APMX [дюйм] | RMPX [град] | CNSC | DCONMS [дюйм] | BD [дюйм] | LF [дюйм] | LU [дюйм] | TQ [фут-фунт] | RPMX [1/мин] |
|---|---|---|---|---|---|---|---|---|---|---|
| MS20-AR016O16L-10L | 0.625 | 0.354 | 7.80 | 1 + 2 | 0.625 | 0.602 | 5.625 | 1.000 | 1.2 | 23100 |
| MS20-AR019O19L-10L | 0.750 | 0.354 | 5.40 | 1 + 2 | 0.750 | 0.724 | 6.500 | 1.250 | 1.2 | 19100 |
| MS20-AR025O25L-10L | 1.000 | 0.354 | 3.20 | 1 + 2 | 1.000 | 0.957 | 8.000 | 2.000 | 1.2 | 16100 |
| MS20-AR025O25L-10M | 1.000 | 0.354 | 3.20 | 1 + 3 | 1.000 | 0.957 | 8.000 | 2.000 | 1.2 | 16100 |
R = Правая, L = Левая
