Инструменты фрезерования | Инструменты высокопроизводительного фрезерования

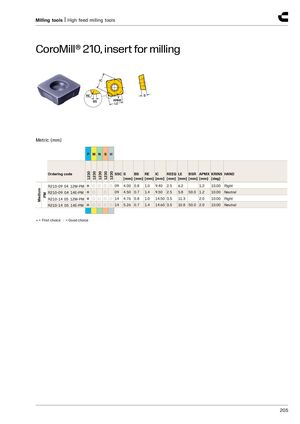

CoroMill® 210, пластина для фрезерования
Метрические единицы (мм) | Среднее
| Артикул | P | M | N | S | H | SSC | S [мм] | BS [мм] | RE [мм] | IC [мм] | REEQ [мм] | LE [мм] | BSR [мм] | APMX [мм] | KRINS [град] | Направление |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| R210-09 04 12M-PM | ● | ○ | ○ | ○ | ○ | 09 | 4.00 | 0.8 | 1.0 | 9.40 | 2.5 | 6.2 | 1.2 | 10.00 | Правое | |
| R210-09 04 14E-PM | ● | ○ | ○ | 09 | 4.50 | 0.7 | 1.4 | 9.50 | 2.5 | 5.8 | 50.0 | 1.2 | 10.00 | Нейтральное | ||
| R210-14 05 12M-PM | ● | ○ | ○ | ○ | ○ | 14 | 4.76 | 0.8 | 1.0 | 14.50 | 3.5 | 11.3 | 2.0 | 10.00 | Правое | |
| R210-14 05 14E-PM | ● | ○ | ○ | ○ | ○ | 14 | 5.26 | 0.7 | 1.4 | 14.60 | 3.5 | 10.8 | 50.0 | 2.0 | 10.00 | Нейтральное |
● = Первый выбор ○ = Хороший выбор
