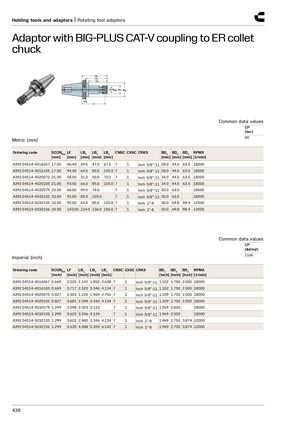

Зажимные приспособления и переходники | Вращающиеся переходники инструмента
Переходник с BIG-PLUS CAT-V муфтой к цанговому патрону ER
Общие значения данных
Давление охлаждающей жидкости: 80 [бар]
Метрические единицы (мм)
| Артикул | DCONWS [мм] | LF [мм] | LB1 [мм] | LB2 [мм] | LB3 [мм] | CNSC | CXSC | CRKS | BD1 [мм] | BD2 [мм] | BD3 [мм] | RPMX [об/мин] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A392.54514-4016067 | 17,00 | 56,40 | 29,0 | 47,0 | 67,0 | 7 | 1 | Inch 5/8"-11 | 28,0 | 44,5 | 63,5 | 18000 |
| A392.54514-4016105 | 17,00 | 94,40 | 64,0 | 85,0 | 105,0 | 7 | 1 | Inch 5/8"-11 | 28,0 | 44,5 | 63,5 | 18000 |
| A392.54514-4020070 | 21,00 | 58,50 | 31,0 | 50,0 | 70,0 | 7 | 1 | Inch 5/8"-11 | 34,0 | 44,5 | 63,5 | 18000 |
| A392.54514-4020105 | 21,00 | 93,50 | 66,0 | 85,0 | 105,0 | 7 | 1 | Inch 5/8"-11 | 34,0 | 44,5 | 63,5 | 18000 |
| A392.54514-4032079 | 33,00 | 66,00 | 59,0 | 79,0 | 7 | 1 | Inch 5/8"-11 | 50,0 | 63,5 | 18000 | ||
| A392.54514-4032105 | 33,00 | 92,00 | 85,0 | 105,0 | 7 | 1 | Inch 5/8"-11 | 50,0 | 63,5 | 18000 | ||
| A392.54514-5032105 | 33,00 | 92,00 | 63,0 | 85,0 | 105,0 | 7 | 1 | Inch 1"-8 | 50,0 | 69,8 | 98,4 | 12000 |
| A392.54514-5032156 | 33,00 | 143,00 | 114,0 | 136,0 | 156,0 | 7 | 1 | Inch 1"-8 | 50,0 | 69,8 | 98,4 | 12000 |
Общие значения данных
Давление охлаждающей жидкости: 1160 [lbf/in²]
Дюймовые единицы (дюймы)
| Артикул | DCONWS [дюйм] | LF [дюйм] | LB1 [дюйм] | LB2 [дюйм] | LB3 [дюйм] | CNSC | CXSC | CRKS | BD1 [дюйм] | BD2 [дюйм] | BD3 [дюйм] | RPMX [об/мин] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A392.54514-4016067 | 0,669 | 2,220 | 1,142 | 1,850 | 2,638 | 7 | 1 | Inch 5/8"-11 | 1,102 | 1,750 | 2,500 | 18000 |
| A392.54514-4016105 | 0,669 | 3,717 | 2,520 | 3,346 | 4,134 | 7 | 1 | Inch 5/8"-11 | 1,102 | 1,750 | 2,500 | 18000 |
| A392.54514-4020070 | 0,827 | 2,303 | 1,220 | 1,969 | 2,756 | 7 | 1 | Inch 5/8"-11 | 1,339 | 1,750 | 2,500 | 18000 |
| A392.54514-4020105 | 0,827 | 3,681 | 2,598 | 3,346 | 4,134 | 7 | 1 | Inch 5/8"-11 | 1,339 | 1,750 | 2,500 | 18000 |
| A392.54514-4032079 | 1,299 | 2,598 | 2,323 | 3,110 | 7 | 1 | Inch 5/8"-11 | 1,969 | 2,500 | 18000 | ||
| A392.54514-4032105 | 1,299 | 3,622 | 3,346 | 4,134 | 7 | 1 | Inch 5/8"-11 | 1,969 | 2,500 | 18000 | ||
| A392.54514-5032105 | 1,299 | 3,622 | 2,480 | 3,346 | 4,134 | 7 | 1 | Inch 1"-8 | 1,969 | 2,750 | 3,874 | 12000 |
| A392.54514-5032156 | 1,299 | 5,630 | 4,488 | 5,354 | 6,142 | 7 | 1 | Inch 1"-8 | 1,969 | 2,750 | 3,874 | 12000 |
