Фрезерные инструменты | Инструменты для профильного фрезерования

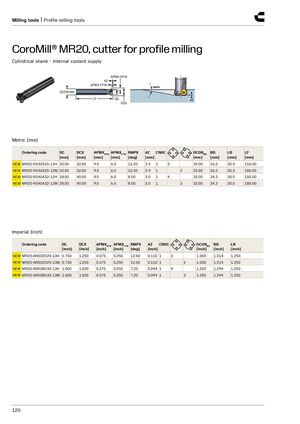

CoroMill® MR20, фреза для профильного фрезерования
Цилиндрический хвостовик - Внутренняя подача СОЖ
| Метрические размеры (мм) | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Код заказа | DC [мм] | DCX [мм] | APMX EFW [мм] | APMX FFW [мм] | RMPX [град] | AZ [мм] | CNSC | DCONMS [мм] | BD [мм] | LB [мм] | LF [мм] | |
| NEW MR20-R032A25-12H | 20.00 | 32.00 | 9.0 | 6.0 | 12.20 | 2.9 | 1 | 3 | 25.00 | 26.2 | 30.0 | 150.00 |
| NEW MR20-R032A25-12M | 20.00 | 32.00 | 9.0 | 6.0 | 12.20 | 2.9 | 1 | 2 | 25.00 | 26.2 | 30.0 | 180.00 |
| NEW MR20-R040A32-12H | 28.00 | 40.00 | 9.0 | 6.0 | 8.00 | 3.0 | 1 | 4 | 32.00 | 34.2 | 30.0 | 150.00 |
| NEW MR20-R040A32-12M | 28.00 | 40.00 | 9.0 | 6.0 | 8.00 | 3.0 | 1 | 3 | 32.00 | 34.2 | 30.0 | 180.00 |
| Дюймовые размеры (дюймы) | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Код заказа | DC [дюйм] | DCX [дюйм] | APMX EFW [дюйм] | APMX FFW [дюйм] | RMPX [град] | AZ [дюйм] | CNSC | DCONMS [дюйм] | BD [дюйм] | LB [дюйм] | |
| NEW MR20-AR032O25-13H | 0.750 | 1.250 | 0.375 | 0.250 | 12.50 | 0.110 | 1 | 3 | 1.000 | 1.014 | 1.250 |
| NEW MR20-AR032O25-13M | 0.750 | 1.250 | 0.375 | 0.250 | 12.50 | 0.110 | 1 | 2 | 1.000 | 1.014 | 1.250 |
| NEW MR20-AR038O32-13H | 1.000 | 1.500 | 0.375 | 0.250 | 7.20 | 0.094 | 1 | 4 | 1.250 | 1.294 | 1.250 |
| NEW MR20-AR038O32-13M | 1.000 | 1.500 | 0.375 | 0.250 | 7.20 | 0.094 | 1 | 3 | 1.250 | 1.294 | 1.250 |
