Резцы для отрезки и нарезки канавок | CoroCut® XS

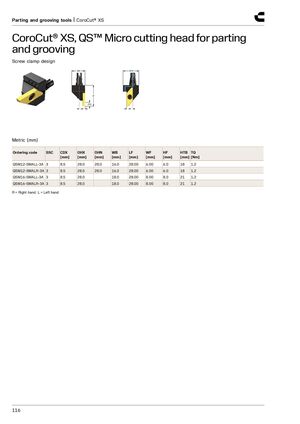

CoroCut® XS, микрорезец QS™ для отрезки и нарезки канавок
Конструкция со стяжной гайкой
| Метрические размеры (мм) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Код заказа | SSC | CDX [мм] | OHX [мм] | OHN [мм] | WB [мм] | LF [мм] | WF [мм] | HF [мм] | HTB [мм] | TQ [Нм] |
| QSM12-SMALL-3A | 3 | 8.5 | 28.0 | 28.0 | 16.0 | 28.00 | 6.00 | 6.0 | 18 | 1.2 |
| QSM12-SMALR-3A | 3 | 8.5 | 28.0 | 28.0 | 16.0 | 28.00 | 6.00 | 6.0 | 18 | 1.2 |
| QSM16-SMALL-3A | 3 | 8.5 | 28.0 | 18.0 | 28.00 | 8.00 | 8.0 | 21 | 1.2 | |
| QSM16-SMALR-3A | 3 | 8.5 | 28.0 | 18.0 | 28.00 | 8.00 | 8.0 | 21 | 1.2 | |
R = Правое вращение, L = Левое вращение
