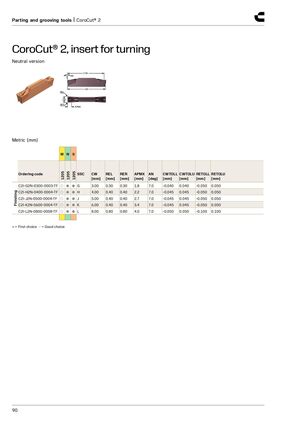

Пластины CoroCut® 2 для точения
Пластина для точения, нейтральное исполнение
Чистовая обработка
| Артикул | Применение | SSC [мм] | CW [мм] | REL [мм] | RER [мм] | APMX [мм] | AN [град] | CWTOLL [мм] | CWTOLU [мм] | RETOLL [мм] | RETOLU [мм] |
|---|---|---|---|---|---|---|---|---|---|---|---|
| C2I-G2N-0300-0003-TF | G | 3.00 | 0.30 | 0.30 | 1.8 | 7.0 | -0.040 | 0.040 | -0.050 | 0.050 | |
| C2I-H2N-0400-0004-TF | H | 4.00 | 0.40 | 0.40 | 2.2 | 7.0 | -0.045 | 0.045 | -0.050 | 0.050 | |
| C2I-J2N-0500-0004-TF | J | 5.00 | 0.40 | 0.40 | 2.7 | 7.0 | -0.045 | 0.045 | -0.050 | 0.050 | |
| C2I-K2N-0600-0004-TF | K | 6.00 | 0.40 | 0.40 | 3.4 | 7.0 | -0.045 | 0.045 | -0.050 | 0.050 | |
| C2I-L2N-0800-0008-TF | L | 8.00 | 0.80 | 0.80 | 4.0 | 7.0 | -0.050 | 0.050 | -0.100 | 0.100 |
● = Первый выбор ○ = Хороший выбор
