Державки и адаптеры | Адаптеры расточки

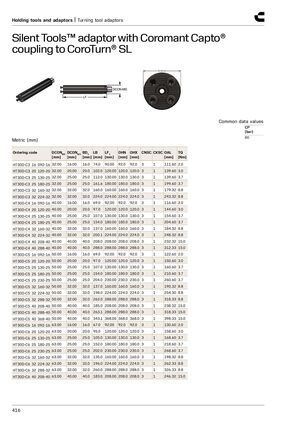

Silent Tools™, адаптер с муфтой Coromant Capto® для CoroTurn® SL
Метрические размеры (мм)
Общие значения параметров: CP [бар]: 80
| Артикул | DCONMS [мм] | DCONWS [мм] | BD 1 [мм] | LB [мм] | LF 1 [мм] | OHN [мм] | OHX [мм] | CNSC | CXSC | OAL [мм] | TQ [Нм] |
|---|---|---|---|---|---|---|---|---|---|---|---|
| HT30D-C3 16 092-16 | 32.00 | 16.00 | 16.0 | 74.0 | 90.00 | 92.0 | 92.0 | 3 | 1 | 111.60 | 2.0 |
| HT30D-C3 20 120-20 | 32.00 | 20.00 | 20.0 | 102.0 | 120.00 | 120.0 | 120.0 | 3 | 1 | 139.60 | 3.0 |
| HT30D-C3 25 130-25 | 32.00 | 25.00 | 25.0 | 112.0 | 130.00 | 130.0 | 130.0 | 3 | 1 | 139.60 | 3.7 |
| HT30D-C3 25 180-25 | 32.00 | 25.00 | 25.0 | 161.6 | 180.00 | 180.0 | 180.0 | 3 | 1 | 199.60 | 3.7 |
| HT30D-C3 32 160-32 | 32.00 | 32.00 | 32.0 | 160.0 | 160.00 | 160.0 | 160.0 | 3 | 1 | 179.32 | 8.8 |
| HT30D-C3 32 224-32 | 32.00 | 32.00 | 32.0 | 224.0 | 224.00 | 224.0 | 224.0 | 3 | 1 | 243.32 | 8.8 |
| HT30D-C4 16 092-16 | 40.00 | 16.00 | 16.0 | 69.0 | 92.00 | 92.0 | 92.0 | 3 | 1 | 116.60 | 2.0 |
| HT30D-C4 20 120-20 | 40.00 | 20.00 | 20.0 | 97.0 | 120.00 | 120.0 | 120.0 | 3 | 1 | 144.60 | 3.0 |
| HT30D-C4 25 130-25 | 40.00 | 25.00 | 25.0 | 107.0 | 130.00 | 130.0 | 130.0 | 3 | 1 | 154.60 | 3.7 |
| HT30D-C4 25 180-25 | 40.00 | 25.00 | 25.0 | 154.0 | 180.00 | 180.0 | 180.0 | 3 | 1 | 204.60 | 3.7 |
| HT30D-C4 32 160-32 | 40.00 | 32.00 | 32.0 | 137.0 | 160.00 | 160.0 | 160.0 | 3 | 1 | 184.32 | 8.8 |
| HT30D-C4 32 224-32 | 40.00 | 32.00 | 32.0 | 200.1 | 224.00 | 224.0 | 224.0 | 3 | 1 | 248.32 | 8.8 |
| HT30D-C4 40 208-40 | 40.00 | 40.00 | 40.0 | 208.0 | 208.00 | 208.0 | 208.0 | 3 | 1 | 232.32 | 15.0 |
| HT30D-C4 40 288-40 | 40.00 | 40.00 | 40.0 | 288.0 | 288.00 | 288.0 | 288.0 | 3 | 1 | 312.33 | 15.0 |
| HT30D-C5 16 092-16 | 50.00 | 16.00 | 16.0 | 69.0 | 92.00 | 92.0 | 92.0 | 3 | 1 | 122.60 | 2.0 |
| HT30D-C5 20 120-20 | 50.00 | 20.00 | 20.0 | 97.0 | 120.00 | 120.0 | 120.0 | 3 | 1 | 150.60 | 3.0 |
| HT30D-C5 25 130-25 | 50.00 | 25.00 | 25.0 | 107.0 | 130.00 | 130.0 | 130.0 | 3 | 1 | 160.60 | 3.7 |
| HT30D-C5 25 180-25 | 50.00 | 25.00 | 25.0 | 154.0 | 180.00 | 180.0 | 180.0 | 3 | 1 | 210.60 | 3.7 |
| HT30D-C5 25 230-25 | 50.00 | 25.00 | 25.0 | 204.0 | 230.00 | 230.0 | 230.0 | 3 | 1 | 260.60 | 3.7 |
| HT30D-C5 32 160-32 | 50.00 | 32.00 | 32.0 | 137.0 | 160.00 | 160.0 | 160.0 | 3 | 1 | 190.32 | 8.8 |
| HT30D-C5 32 224-32 | 50.00 | 32.00 | 32.0 | 198.0 | 224.00 | 224.0 | 224.0 | 3 | 1 | 254.30 | 8.8 |
| HT30D-C5 32 288-32 | 50.00 | 32.00 | 32.0 | 262.0 | 288.00 | 288.0 | 288.0 | 3 | 1 | 318.33 | 8.8 |
| HT30D-C5 40 208-40 | 50.00 | 40.00 | 40.0 | 185.0 | 208.00 | 208.0 | 208.0 | 3 | 1 | 238.32 | 15.0 |
| HT30D-C5 40 288-40 | 50.00 | 40.00 | 40.0 | 263.1 | 288.00 | 288.0 | 288.0 | 3 | 1 | 318.33 | 15.0 |
| HT30D-C5 40 368-40 | 50.00 | 40.00 | 40.0 | 343.1 | 368.00 | 368.0 | 368.0 | 3 | 1 | 398.33 | 15.0 |
| HT30D-C6 16 092-16 | 63.00 | 16.00 | 16.0 | 67.0 | 92.00 | 92.0 | 92.0 | 3 | 1 | 130.60 | 2.0 |
| HT30D-C6 20 120-20 | 63.00 | 20.00 | 20.0 | 95.0 | 120.00 | 120.0 | 120.0 | 3 | 1 | 158.60 | 3.0 |
| HT30D-C6 25 130-25 | 63.00 | 25.00 | 25.0 | 105.0 | 130.00 | 130.0 | 130.0 | 3 | 1 | 168.60 | 3.7 |
| HT30D-C6 25 180-25 | 63.00 | 25.00 | 25.0 | 152.0 | 180.00 | 180.0 | 180.0 | 3 | 1 | 218.60 | 3.7 |
| HT30D-C6 25 230-25 | 63.00 | 25.00 | 25.0 | 202.0 | 230.00 | 230.0 | 230.0 | 3 | 1 | 268.60 | 3.7 |
| HT30D-C6 32 160-32 | 63.00 | 32.00 | 32.0 | 135.0 | 160.00 | 160.0 | 160.0 | 3 | 1 | 198.32 | 8.8 |
| HT30D-C6 32 224-32 | 63.00 | 32.00 | 32.0 | 196.0 | 224.00 | 224.0 | 224.0 | 3 | 1 | 262.33 | 8.8 |
| HT30D-C6 32 288-32 | 63.00 | 32.00 | 32.0 | 260.0 | 288.00 | 288.0 | 288.0 | 3 | 1 | 326.33 | 8.8 |
| HT30D-C6 40 208-40 | 63.00 | 40.00 | 40.0 | 183.0 | 208.00 | 208.0 | 208.0 | 3 | 1 | 246.32 | 15.0 |
