Инструменты расточки | Внутренние инструменты расточки

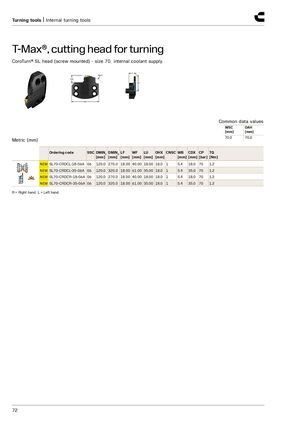

T-Max®, режущая головка для расточки
Режущая головка CoroTurn® SL (винтовое крепление) - размер 70, система подвода СОЖ.
| Общие значения параметров | |
|---|---|
| WSC [мм] | OAH [мм] |
| 70.0 | 70.0 |
Метрическая система (мм)
| Артикул заказа | SSC | DMIN 1 [мм] | DMIN 2 [мм] | LF [мм] | WF [мм] | LU [мм] | OHX [мм] | CNSC [бар] | WB [мм] | CDX [мм] | CP | TQ [Нм] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| НОВ SL70-CRDCL-18-06A | 06 | 120.0 | 270.0 | 18.00 | 40.00 | 18.00 | 18.0 | 1 | 5.4 | 18.0 | 70 | 1.2 |
| НОВ SL70-CRDCL-35-06A | 06 | 120.0 | 320.0 | 18.00 | 61.00 | 35.00 | 18.0 | 1 | 5.4 | 35.0 | 70 | 1.2 |
| НОВ SL70-CRDCR-18-06A | 06 | 120.0 | 270.0 | 18.00 | 40.00 | 18.00 | 18.0 | 1 | 5.4 | 18.0 | 70 | 1.2 |
| НОВ SL70-CRDCR-35-06A | 06 | 120.0 | 320.0 | 18.00 | 61.00 | 35.00 | 18.0 | 1 | 5.4 | 35.0 | 70 | 1.2 |
П = правое вращение, Л = левое вращение
