Инструменты расточки | Внутренние инструменты расточки

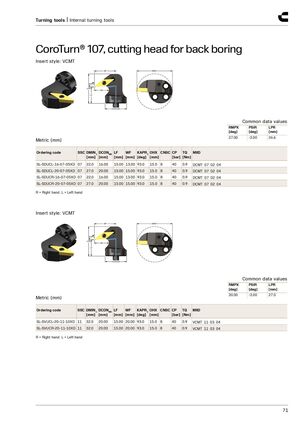

CoroTurn® 107, режущая головка для проходного растачивания
Пластина стиля: VCMT
| Общие значения параметров | ||
|---|---|---|
| RMPX [градус] | PSIR [градус] | LPR [мм] |
| 27.00 | -3.00 | 26.6 |
Метрическая система (мм)
| Артикул заказа | SSC | DMIN 1 [мм] | DCONMS [мм] | LF [мм] | WF [мм] | KAPR 1 [градус] | OHX [мм] | CNSC [бар] | CP | TQ [Нм] | MIID | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SL-SDUCL-16-07-05XD | 07 | 22.0 | 16.00 | 15.00 | 13.00 | 93.0 | — | 15.0 | 8 | 40 | 0.9 | DCMT 07 02 04 |
| SL-SDUCL-20-07-05XD | 07 | 27.0 | 20.00 | 15.00 | 15.00 | 93.0 | — | 15.0 | 8 | 40 | 0.9 | DCMT 07 02 04 |
| SL-SDUCR-16-07-05XD | 07 | 22.0 | 16.00 | 15.00 | 13.00 | 93.0 | — | 15.0 | 8 | 40 | 0.9 | DCMT 07 02 04 |
| SL-SDUCR-20-07-05XD | 07 | 27.0 | 20.00 | 15.00 | 15.00 | 93.0 | — | 15.0 | 8 | 40 | 0.9 | DCMT 07 02 04 |
П = правое вращение, Л = левое вращение
Пластина стиля: VCMT
| Общие значения параметров | ||
|---|---|---|
| RMPX [градус] | PSIR [градус] | LPR [мм] |
| 30.00 | -3.00 | 27.0 |
Метрическая система (мм)
| Артикул заказа | SSC | DMIN 1 [мм] | DCONMS [мм] | LF [мм] | WF [мм] | KAPR 1 [градус] | OHX [мм] | CNSC [бар] | CP | TQ [Нм] | MIID | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SL-SVUCL-20-11-10XD | 11 | 32.0 | 20.00 | 15.00 | 20.00 | 93.0 | — | 15.0 | 8 | 40 | 0.9 | VCMT 11 03 04 |
| SL-SVUCR-20-11-10XD | 11 | 32.0 | 20.00 | 15.00 | 20.00 | 93.0 | — | 15.0 | 8 | 40 | 0.9 | VCMT 11 03 04 |
П = правое вращение, Л = левое вращение
