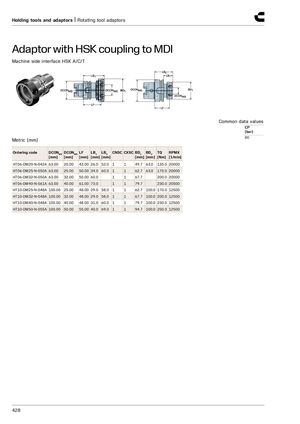

Держатели инструмента и адаптеры | Адаптеры для вращающихся инструментов
Адаптер с муфтой HSK к MDI
Интерфейс со стороны станка HSK A/C/T
Размеры в миллиметрах
| Артикул | DCONMS [мм] | DCONWS [мм] | LF [мм] | LB 1 [мм] | LB 2 [мм] | CNSC | CXSC | BD 1 [мм] | BD 2 [мм] | TQ [Нм] | RPMX [об/мин] |
|---|---|---|---|---|---|---|---|---|---|---|---|
| HT06-DM20-N-042A | 63,00 | 20,00 | 42,00 | 26,0 | 52,0 | 1 | 1 | 49,7 | 63,0 | 135,0 | 20000 |
| HT06-DM25-N-050A | 63,00 | 25,00 | 50,00 | 34,0 | 60,0 | 1 | 1 | 62,7 | 63,0 | 170,0 | 20000 |
| HT06-DM32-N-050A | 63,00 | 32,00 | 50,00 | 60,0 | 1 | 1 | 67,7 | 200,0 | 20000 | ||
| HT06-DM40-N-061A | 63,00 | 40,00 | 61,00 | 73,0 | 1 | 1 | 79,7 | 230,0 | 20500 | ||
| HT10-DM25-N-048A | 100,00 | 25,00 | 48,00 | 29,0 | 58,0 | 1 | 1 | 62,7 | 100,0 | 170,0 | 12500 |
| HT10-DM32-N-048A | 100,00 | 32,00 | 48,00 | 29,0 | 58,0 | 1 | 1 | 67,7 | 100,0 | 200,0 | 12500 |
| HT10-DM40-N-048A | 100,00 | 40,00 | 48,00 | 31,0 | 60,0 | 1 | 1 | 79,7 | 100,0 | 230,0 | 12500 |
| HT10-DM50-N-055A | 100,00 | 50,00 | 55,00 | 40,0 | 69,0 | 1 | 1 | 94,7 | 100,0 | 250,0 | 12500 |
Общие характеристики: CP [бар] = 80
