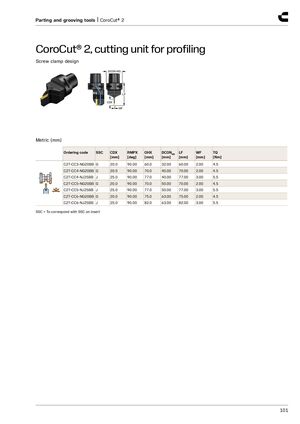

Инструменты отрезки и нарезания канавок | CoroCut® 2
CoroCut® 2, сборка резца для профилирования
Конструкция с винтовым зажимом
| Артикул | SSC | CDX [мм] | RMPX [град] | OHX [мм] | DCONMS [мм] | LF [мм] | WF [мм] | TQ [Нм] |
|---|---|---|---|---|---|---|---|---|
| C2T-CC3-NG20BB | G | 20.0 | 90.00 | 60.0 | 32.00 | 60.00 | 2.00 | 4.5 |
| C2T-CC4-NG20BB | G | 20.0 | 90.00 | 70.0 | 40.00 | 70.00 | 2.00 | 4.5 |
| C2T-CC4-NJ25BB | J | 25.0 | 90.00 | 77.0 | 40.00 | 77.00 | 3.00 | 5.5 |
| C2T-CC5-NG20BB | G | 20.0 | 90.00 | 70.0 | 50.00 | 70.00 | 2.00 | 4.5 |
| C2T-CC5-NJ25BB | J | 25.0 | 90.00 | 77.0 | 50.00 | 77.00 | 3.00 | 5.5 |
| C2T-CC6-NG20BB | G | 20.0 | 90.00 | 75.0 | 63.00 | 75.00 | 2.00 | 4.5 |
| C2T-CC6-NJ25BB | J | 25.0 | 90.00 | 82.0 | 63.00 | 82.00 | 3.00 | 5.5 |
SSC = должен соответствовать SSC пластины
