Зажимные приспособления и переходники | Вращающиеся переходники инструмента

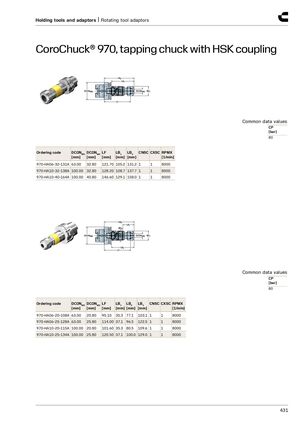

CoroChuck® 970, патрон для нарезания резьбы с HSK-хвостовиком
Общие значения данных
Давление охлаждающей жидкости: 80 [бар]
| Артикул | DCONMS [мм] | DCONWS [мм] | LF [мм] | LB1 [мм] | LB2 [мм] | CNSC | CXSC | RPMX [об/мин] |
|---|---|---|---|---|---|---|---|---|
| 970-HA06-32-131A | 63,00 | 32,80 | 121,70 | 105,2 | 131,2 | 1 | 1 | 8000 |
| 970-HA10-32-138A | 100,00 | 32,80 | 128,20 | 108,7 | 137,7 | 1 | 1 | 8000 |
| 970-HA10-40-164A | 100,00 | 40,80 | 146,60 | 129,1 | 158,0 | 1 | 1 | 8000 |
Общие значения данных
Давление охлаждающей жидкости: 80 [бар]
| Артикул | DCONMS [мм] | DCONWS [мм] | LF [мм] | LB1 [мм] | LB2 [мм] | LB3 [мм] | CNSC | CXSC | RPMX [об/мин] |
|---|---|---|---|---|---|---|---|---|---|
| 970-HA06-20-108A | 63,00 | 20,80 | 95,10 | 35,3 | 77,1 | 103,1 | 1 | 1 | 8000 |
| 970-HA06-25-128A | 63,00 | 25,80 | 114,00 | 37,1 | 96,5 | 122,5 | 1 | 1 | 8000 |
| 970-HA10-20-115A | 100,00 | 20,80 | 101,60 | 35,3 | 80,5 | 109,6 | 1 | 1 | 8000 |
| 970-HA10-25-134A | 100,00 | 25,80 | 120,50 | 37,1 | 100,0 | 129,0 | 1 | 1 | 8000 |
