Держатели инструмента и адаптеры | Адаптеры для вращающихся инструментов

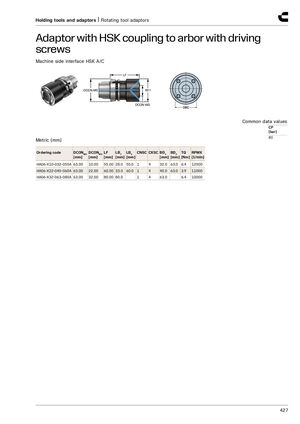

Адаптер с муфтой HSK к хвостовику с установочными винтами
Интерфейс со стороны станка HSK A/C
Размеры в миллиметрах
| Артикул | DCONMS [мм] | DCONWS [мм] | LF [мм] | LB 1 [мм] | LB 2 [мм] | CNSC | CXSC | BD 1 [мм] | BD 2 [мм] | TQ [Нм] | RPMX [об/мин] |
|---|---|---|---|---|---|---|---|---|---|---|---|
| HA06-X10-032-055A | 63,00 | 10,00 | 55,00 | 28,0 | 55,0 | 1 | 4 | 32,0 | 63,0 | 6,4 | 12000 |
| HA06-X22-040-060A | 63,00 | 22,00 | 60,00 | 33,0 | 60,0 | 1 | 4 | 40,0 | 63,0 | 3,9 | 11000 |
| HA06-X32-063-080A | 63,00 | 32,00 | 80,00 | 80,0 | 1 | 4 | 63,0 | 6,4 | 10000 |
Общие характеристики: CP [бар] = 80
