Круглые цельные инструменты | Сверлильные инструменты

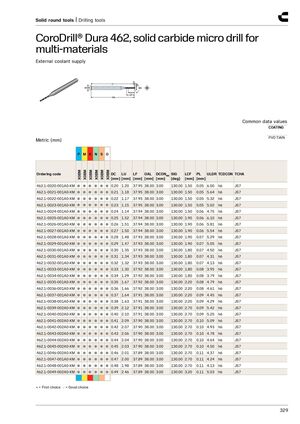

CoroDrill® Dura 462, цельнокарбидное микросверло для универсальной обработки
Подвод СОЖ снаружи
Основные параметры
Покрытие: PVD TiAlN
| Артикул | DC [мм] | LU [мм] | LF [мм] | OAL [мм] | DCONMS [мм] | SIG [град] | LCF [мм] | PL [мм] | ULDR | TCDCON | TCHA | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 462.1-0020-001A0-XM | 0.20 | 1.20 | 37.95 | 38.00 | 3.00 | 130.00 | 1.50 | 0.05 | 6.00 | h6 | JS7 | |
| 462.1-0021-001A0-XM | 0.21 | 1.18 | 37.95 | 38.00 | 3.00 | 130.00 | 1.50 | 0.05 | 5.64 | h6 | JS7 | |
| 462.1-0022-001A0-XM | 0.22 | 1.17 | 37.95 | 38.00 | 3.00 | 130.00 | 1.50 | 0.05 | 5.32 | h6 | JS7 | |
| 462.1-0023-001A0-XM | 0.23 | 1.15 | 37.95 | 38.00 | 3.00 | 130.00 | 1.50 | 0.05 | 5.02 | h6 | JS7 | |
| 462.1-0024-001A0-XM | 0.24 | 1.14 | 37.94 | 38.00 | 3.00 | 130.00 | 1.50 | 0.06 | 4.75 | h6 | JS7 | |
| 462.1-0025-001A0-XM | 0.25 | 1.52 | 37.94 | 38.00 | 3.00 | 130.00 | 1.90 | 0.06 | 6.10 | h6 | JS7 | |
| 462.1-0026-001A0-XM | 0.26 | 1.51 | 37.94 | 38.00 | 3.00 | 130.00 | 1.90 | 0.06 | 5.81 | h6 | JS7 | |
| 462.1-0027-001A0-XM | 0.27 | 1.50 | 37.94 | 38.00 | 3.00 | 130.00 | 1.90 | 0.06 | 5.54 | h6 | JS7 | |
| 462.1-0028-001A0-XM | 0.28 | 1.48 | 37.93 | 38.00 | 3.00 | 130.00 | 1.90 | 0.07 | 5.29 | h6 | JS7 | |
| 462.1-0029-001A0-XM | 0.29 | 1.47 | 37.93 | 38.00 | 3.00 | 130.00 | 1.90 | 0.07 | 5.05 | h6 | JS7 | |
| 462.1-0030-001A0-XM | 0.30 | 1.35 | 37.93 | 38.00 | 3.00 | 130.00 | 1.80 | 0.07 | 4.50 | h6 | JS7 | |
| 462.1-0031-001A0-XM | 0.31 | 1.34 | 37.93 | 38.00 | 3.00 | 130.00 | 1.80 | 0.07 | 4.31 | h6 | JS7 | |
| 462.1-0032-001A0-XM | 0.32 | 1.32 | 37.93 | 38.00 | 3.00 | 130.00 | 1.80 | 0.07 | 4.13 | h6 | JS7 | |
| 462.1-0033-001A0-XM | 0.33 | 1.30 | 37.92 | 38.00 | 3.00 | 130.00 | 1.80 | 0.08 | 3.95 | h6 | JS7 | |
| 462.1-0034-001A0-XM | 0.34 | 1.29 | 37.92 | 38.00 | 3.00 | 130.00 | 1.80 | 0.08 | 3.79 | h6 | JS7 | |
| 462.1-0035-001A0-XM | 0.35 | 1.67 | 37.92 | 38.00 | 3.00 | 130.00 | 2.20 | 0.08 | 4.79 | h6 | JS7 | |
| 462.1-0036-001A0-XM | 0.36 | 1.66 | 37.92 | 38.00 | 3.00 | 130.00 | 2.20 | 0.08 | 4.61 | h6 | JS7 | |
| 462.1-0037-001A0-XM | 0.37 | 1.64 | 37.91 | 38.00 | 3.00 | 130.00 | 2.20 | 0.09 | 4.45 | h6 | JS7 | |
| 462.1-0038-001A0-XM | 0.38 | 1.63 | 37.91 | 38.00 | 3.00 | 130.00 | 2.20 | 0.09 | 4.29 | h6 | JS7 | |
| 462.1-0039-002A0-XM | 0.39 | 2.12 | 37.91 | 38.00 | 3.00 | 130.00 | 2.70 | 0.09 | 5.42 | h6 | JS7 | |
| 462.1-0040-002A0-XM | 0.40 | 2.10 | 37.91 | 38.00 | 3.00 | 130.00 | 2.70 | 0.09 | 5.25 | h6 | JS7 | |
| 462.1-0041-002A0-XM | 0.41 | 2.09 | 37.90 | 38.00 | 3.00 | 130.00 | 2.70 | 0.10 | 5.09 | h6 | JS7 | |
| 462.1-0042-002A0-XM | 0.42 | 2.07 | 37.90 | 38.00 | 3.00 | 130.00 | 2.70 | 0.10 | 4.93 | h6 | JS7 | |
| 462.1-0043-002A0-XM | 0.43 | 2.06 | 37.90 | 38.00 | 3.00 | 130.00 | 2.70 | 0.10 | 4.78 | h6 | JS7 | |
| 462.1-0044-002A0-XM | 0.44 | 2.04 | 37.90 | 38.00 | 3.00 | 130.00 | 2.70 | 0.10 | 4.64 | h6 | JS7 | |
| 462.1-0045-002A0-XM | 0.45 | 2.03 | 37.90 | 38.00 | 3.00 | 130.00 | 2.70 | 0.10 | 4.50 | h6 | JS7 | |
| 462.1-0046-002A0-XM | 0.46 | 2.01 | 37.89 | 38.00 | 3.00 | 130.00 | 2.70 | 0.11 | 4.37 | h6 | JS7 | |
| 462.1-0047-001A0-XM | 0.47 | 2.00 | 37.89 | 38.00 | 3.00 | 130.00 | 2.70 | 0.11 | 4.24 | h6 | JS7 | |
| 462.1-0048-001A0-XM | 0.48 | 1.98 | 37.89 | 38.00 | 3.00 | 130.00 | 2.70 | 0.11 | 4.13 | h6 | JS7 | |
| 462.1-0049-002A0-XM | 0.49 | 2.46 | 37.89 | 38.00 | 3.00 | 130.00 | 3.20 | 0.11 | 5.03 | h6 | JS7 |
● = Первый выбор ○ = Хороший выбор
