Круглые цельные инструменты | Сверлильные инструменты

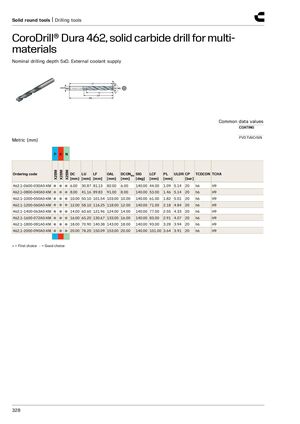

CoroDrill® Dura 462, цельнокарбидное сверло для универсальной обработки
Номинальная глубина сверления 5xD. Подвод СОЖ снаружи
Основные параметры
Покрытие: PVD TiAlCrSiN
| Артикул | DC [мм] | LU [мм] | LF [мм] | OAL [мм] | DCONMS [мм] | SIG [град] | LCF [мм] | PL [мм] | ULDR | CP [бар] | TCDCON | TCHA | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 462.1-0600-030A0-XM | 6.00 | 30.87 | 81.13 | 82.00 | 6.00 | 140.00 | 44.00 | 1.09 | 5.14 | 20 | h6 | H9 | |
| 462.1-0800-040A0-XM | 8.00 | 41.16 | 89.83 | 91.00 | 8.00 | 140.00 | 53.00 | 1.46 | 5.14 | 20 | h6 | H9 | |
| 462.1-1000-050A0-XM | 10.00 | 50.10 | 101.54 | 103.00 | 10.00 | 140.00 | 61.00 | 1.82 | 5.01 | 20 | h6 | H9 | |
| 462.1-1200-060A0-XM | 12.00 | 58.10 | 116.25 | 118.00 | 12.00 | 140.00 | 71.00 | 2.18 | 4.84 | 20 | h6 | H9 | |
| 462.1-1400-063A0-XM | 14.00 | 60.60 | 121.96 | 124.00 | 14.00 | 140.00 | 77.00 | 2.55 | 4.33 | 20 | h6 | H9 | |
| 462.1-1600-072A0-XM | 16.00 | 65.20 | 130.67 | 133.00 | 16.00 | 140.00 | 83.00 | 2.91 | 4.07 | 20 | h6 | H9 | |
| 462.1-1800-081A0-XM | 18.00 | 70.90 | 140.38 | 143.00 | 18.00 | 140.00 | 93.00 | 3.28 | 3.94 | 20 | h6 | H9 | |
| 462.1-2000-090A0-XM | 20.00 | 78.20 | 150.09 | 153.00 | 20.00 | 140.00 | 101.00 | 3.64 | 3.91 | 20 | h6 | H9 |
● = Первый выбор ○ = Хороший выбор
