Круглые цельные инструменты | Сверлильные инструменты

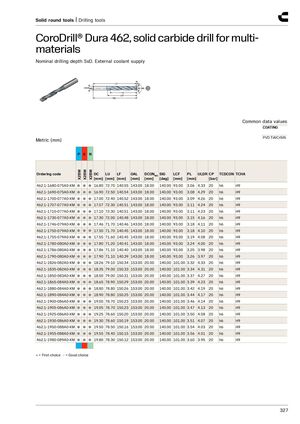

CoroDrill® Dura 462, цельнокарбидное сверло для универсальной обработки
Номинальная глубина сверления 5xD. Подвод СОЖ снаружи
Основные параметры
Покрытие: PVD TiAlCrSiN
| Артикул | DC [мм] | LU [мм] | LF [мм] | OAL [мм] | DCONMS [мм] | SIG [град] | LCF [мм] | PL [мм] | ULDR | CP [бар] | TCDCON | TCHA | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 462.1-1680-075A0-XM | 16.80 | 72.70 | 140.55 | 143.00 | 18.00 | 140.00 | 93.00 | 3.06 | 4.33 | 20 | h6 | H9 | |
| 462.1-1690-075A0-XM | 16.90 | 72.50 | 140.54 | 143.00 | 18.00 | 140.00 | 93.00 | 3.08 | 4.29 | 20 | h6 | H9 | |
| 462.1-1700-077A0-XM | 17.00 | 72.40 | 140.52 | 143.00 | 18.00 | 140.00 | 93.00 | 3.09 | 4.26 | 20 | h6 | H9 | |
| 462.1-1707-077A0-XM | 17.07 | 72.30 | 140.51 | 143.00 | 18.00 | 140.00 | 93.00 | 3.11 | 4.24 | 20 | h6 | H9 | |
| 462.1-1710-077A0-XM | 17.10 | 72.30 | 140.51 | 143.00 | 18.00 | 140.00 | 93.00 | 3.11 | 4.23 | 20 | h6 | H9 | |
| 462.1-1730-077A0-XM | 17.30 | 72.00 | 140.48 | 143.00 | 18.00 | 140.00 | 93.00 | 3.15 | 4.16 | 20 | h6 | H9 | |
| 462.1-1746-079A0-XM | 17.46 | 71.70 | 140.46 | 143.00 | 18.00 | 140.00 | 93.00 | 3.18 | 4.11 | 20 | h6 | H9 | |
| 462.1-1750-079A0-XM | 17.50 | 71.70 | 140.45 | 143.00 | 18.00 | 140.00 | 93.00 | 3.18 | 4.10 | 20 | h6 | H9 | |
| 462.1-1755-079A0-XM | 17.55 | 71.60 | 140.45 | 143.00 | 18.00 | 140.00 | 93.00 | 3.19 | 4.08 | 20 | h6 | H9 | |
| 462.1-1780-080A0-XM | 17.80 | 71.20 | 140.41 | 143.00 | 18.00 | 140.00 | 93.00 | 3.24 | 4.00 | 20 | h6 | H9 | |
| 462.1-1786-080A0-XM | 17.86 | 71.10 | 140.40 | 143.00 | 18.00 | 140.00 | 93.00 | 3.25 | 3.98 | 20 | h6 | H9 | |
| 462.1-1790-080A0-XM | 17.90 | 71.10 | 140.39 | 143.00 | 18.00 | 140.00 | 93.00 | 3.26 | 3.97 | 20 | h6 | H9 | |
| 462.1-1826-082A0-XM | 18.26 | 79.10 | 150.34 | 153.00 | 20.00 | 140.00 | 101.00 | 3.32 | 4.33 | 20 | h6 | H9 | |
| 462.1-1835-082A0-XM | 18.35 | 79.00 | 150.33 | 153.00 | 20.00 | 140.00 | 101.00 | 3.34 | 4.31 | 20 | h6 | H9 | |
| 462.1-1850-083A0-XM | 18.50 | 79.00 | 150.31 | 153.00 | 20.00 | 140.00 | 101.00 | 3.37 | 4.27 | 20 | h6 | H9 | |
| 462.1-1865-084A0-XM | 18.65 | 78.90 | 150.29 | 153.00 | 20.00 | 140.00 | 101.00 | 3.39 | 4.23 | 20 | h6 | H9 | |
| 462.1-1880-084A0-XM | 18.80 | 78.80 | 150.26 | 153.00 | 20.00 | 140.00 | 101.00 | 3.42 | 4.19 | 20 | h6 | H9 | |
| 462.1-1890-084A0-XM | 18.90 | 78.80 | 150.25 | 153.00 | 20.00 | 140.00 | 101.00 | 3.44 | 4.17 | 20 | h6 | H9 | |
| 462.1-1900-086A0-XM | 19.00 | 78.70 | 150.23 | 153.00 | 20.00 | 140.00 | 101.00 | 3.46 | 4.14 | 20 | h6 | H9 | |
| 462.1-1905-086A0-XM | 19.05 | 78.70 | 150.23 | 153.00 | 20.00 | 140.00 | 101.00 | 3.47 | 4.13 | 20 | h6 | H9 | |
| 462.1-1925-086A0-XM | 19.25 | 78.60 | 150.20 | 153.00 | 20.00 | 140.00 | 101.00 | 3.50 | 4.08 | 20 | h6 | H9 | |
| 462.1-1930-086A0-XM | 19.30 | 78.60 | 150.19 | 153.00 | 20.00 | 140.00 | 101.00 | 3.51 | 4.07 | 20 | h6 | H9 | |
| 462.1-1950-088A0-XM | 19.50 | 78.50 | 150.16 | 153.00 | 20.00 | 140.00 | 101.00 | 3.54 | 4.03 | 20 | h6 | H9 | |
| 462.1-1955-088A0-XM | 19.55 | 78.40 | 150.15 | 153.00 | 20.00 | 140.00 | 101.00 | 3.56 | 4.01 | 20 | h6 | H9 | |
| 462.1-1980-089A0-XM | 19.80 | 78.30 | 150.12 | 153.00 | 20.00 | 140.00 | 101.00 | 3.60 | 3.95 | 20 | h6 | H9 |
● = Первый выбор ○ = Хороший выбор
