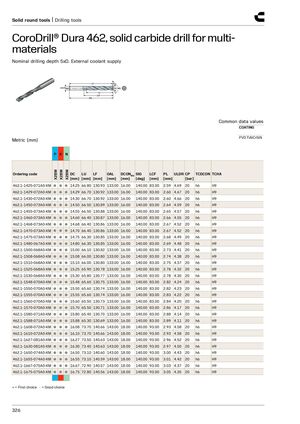

Круглые цельные инструменты | Сверлильные инструменты
CoroDrill® Dura 462, цельнокарбидное сверло для универсальной обработки
Номинальная глубина сверления 5xD. Подвод СОЖ снаружи
Основные параметры
Покрытие: PVD TiAlCrSiN
| Артикул | DC [мм] | LU [мм] | LF [мм] | OAL [мм] | DCONMS [мм] | SIG [град] | LCF [мм] | PL [мм] | ULDR | CP [бар] | TCDCON | TCHA | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 462.1-1425-071A0-XM | 14.25 | 66.80 | 130.93 | 133.00 | 16.00 | 140.00 | 83.00 | 2.59 | 4.69 | 20 | h6 | H9 | |
| 462.1-1429-072A0-XM | 14.29 | 66.70 | 130.92 | 133.00 | 16.00 | 140.00 | 83.00 | 2.60 | 4.67 | 20 | h6 | H9 | |
| 462.1-1430-072A0-XM | 14.30 | 66.70 | 130.92 | 133.00 | 16.00 | 140.00 | 83.00 | 2.60 | 4.66 | 20 | h6 | H9 | |
| 462.1-1450-073A0-XM | 14.50 | 66.50 | 130.89 | 133.00 | 16.00 | 140.00 | 83.00 | 2.64 | 4.59 | 20 | h6 | H9 | |
| 462.1-1455-073A0-XM | 14.55 | 66.50 | 130.88 | 133.00 | 16.00 | 140.00 | 83.00 | 2.65 | 4.57 | 20 | h6 | H9 | |
| 462.1-1460-073A0-XM | 14.60 | 66.40 | 130.87 | 133.00 | 16.00 | 140.00 | 83.00 | 2.66 | 4.55 | 20 | h6 | H9 | |
| 462.1-1468-073A0-XM | 14.68 | 66.40 | 130.86 | 133.00 | 16.00 | 140.00 | 83.00 | 2.67 | 4.52 | 20 | h6 | H9 | |
| 462.1-1470-073A0-XM | 14.70 | 66.40 | 130.86 | 133.00 | 16.00 | 140.00 | 83.00 | 2.67 | 4.52 | 20 | h6 | H9 | |
| 462.1-1475-073A0-XM | 14.75 | 66.30 | 130.85 | 133.00 | 16.00 | 140.00 | 83.00 | 2.68 | 4.49 | 20 | h6 | H9 | |
| 462.1-1480-067A0-XM | 14.80 | 66.30 | 130.85 | 133.00 | 16.00 | 140.00 | 83.00 | 2.69 | 4.48 | 20 | h6 | H9 | |
| 462.1-1500-068A0-XM | 15.00 | 66.10 | 130.82 | 133.00 | 16.00 | 140.00 | 83.00 | 2.73 | 4.41 | 20 | h6 | H9 | |
| 462.1-1508-068A0-XM | 15.08 | 66.00 | 130.80 | 133.00 | 16.00 | 140.00 | 83.00 | 2.74 | 4.38 | 20 | h6 | H9 | |
| 462.1-1510-068A0-XM | 15.10 | 66.00 | 130.80 | 133.00 | 16.00 | 140.00 | 83.00 | 2.75 | 4.37 | 20 | h6 | H9 | |
| 462.1-1525-068A0-XM | 15.25 | 65.90 | 130.78 | 133.00 | 16.00 | 140.00 | 83.00 | 2.78 | 4.32 | 20 | h6 | H9 | |
| 462.1-1530-068A0-XM | 15.30 | 65.80 | 130.77 | 133.00 | 16.00 | 140.00 | 83.00 | 2.78 | 4.30 | 20 | h6 | H9 | |
| 462.1-1548-070A0-XM | 15.48 | 65.60 | 130.75 | 133.00 | 16.00 | 140.00 | 83.00 | 2.82 | 4.24 | 20 | h6 | H9 | |
| 462.1-1550-070A0-XM | 15.50 | 65.60 | 130.74 | 133.00 | 16.00 | 140.00 | 83.00 | 2.82 | 4.23 | 20 | h6 | H9 | |
| 462.1-1555-070A0-XM | 15.55 | 65.60 | 130.74 | 133.00 | 16.00 | 140.00 | 83.00 | 2.83 | 4.22 | 20 | h6 | H9 | |
| 462.1-1560-070A0-XM | 15.60 | 65.50 | 130.73 | 133.00 | 16.00 | 140.00 | 83.00 | 2.84 | 4.20 | 20 | h6 | H9 | |
| 462.1-1570-070A0-XM | 15.70 | 65.50 | 130.71 | 133.00 | 16.00 | 140.00 | 83.00 | 2.86 | 4.17 | 20 | h6 | H9 | |
| 462.1-1580-071A0-XM | 15.80 | 65.40 | 130.70 | 133.00 | 16.00 | 140.00 | 83.00 | 2.88 | 4.14 | 20 | h6 | H9 | |
| 462.1-1588-071A0-XM | 15.88 | 65.30 | 130.69 | 133.00 | 16.00 | 140.00 | 83.00 | 2.89 | 4.11 | 20 | h6 | H9 | |
| 462.1-1608-072A0-XM | 16.08 | 73.70 | 140.66 | 143.00 | 18.00 | 140.00 | 93.00 | 2.93 | 4.58 | 20 | h6 | H9 | |
| 462.1-1610-072A0-XM | 16.10 | 73.70 | 140.66 | 143.00 | 18.00 | 140.00 | 93.00 | 2.93 | 4.58 | 20 | h6 | H9 | |
| 462.1-1627-081A0-XM | 16.27 | 73.50 | 140.63 | 143.00 | 18.00 | 140.00 | 93.00 | 2.96 | 4.52 | 20 | h6 | H9 | |
| 462.1-1630-081A0-XM | 16.30 | 73.40 | 140.63 | 143.00 | 18.00 | 140.00 | 93.00 | 2.97 | 4.50 | 20 | h6 | H9 | |
| 462.1-1650-074A0-XM | 16.50 | 73.10 | 140.60 | 143.00 | 18.00 | 140.00 | 93.00 | 3.00 | 4.43 | 20 | h6 | H9 | |
| 462.1-1655-074A0-XM | 16.55 | 73.10 | 140.59 | 143.00 | 18.00 | 140.00 | 93.00 | 3.01 | 4.42 | 20 | h6 | H9 | |
| 462.1-1667-075A0-XM | 16.67 | 72.90 | 140.57 | 143.00 | 18.00 | 140.00 | 93.00 | 3.03 | 4.37 | 20 | h6 | H9 | |
| 462.1-1675-075A0-XM | 16.75 | 72.80 | 140.56 | 143.00 | 18.00 | 140.00 | 93.00 | 3.05 | 4.35 | 20 | h6 | H9 |
● = Первый выбор ○ = Хороший выбор
