Токарный инструмент | Сменные многогранные пластины

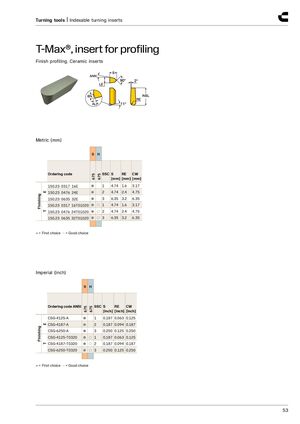

T-Max®, пластина для профилирования
Профилирование чистовых поверхностей. Керамические пластины
Метрическая система (мм)
Марки: S (675) | H (675)
Чистовая обработка
| Артикул | Марка | SSC [мм] | S [мм] | RE [мм] | CW [мм] |
|---|---|---|---|---|---|
| 150.23 0317 16E | E | 1 | 4.74 | 1.6 | 3.17 |
| 150.23 0476 24E | E | 2 | 4.74 | 2.4 | 4.75 |
| 150.23 0635 32E | E | 3 | 6.35 | 3.2 | 6.35 |
| 150.23 0317 16T01020 | T | 1 | 4.74 | 1.6 | 3.17 |
| 150.23 0476 24T01020 | T | 2 | 4.74 | 2.4 | 4.75 |
| 150.23 0635 32T01020 | T | 3 | 6.35 | 3.2 | 6.35 |
● = Первый выбор ○ = Хороший выбор
Дюймовая система (дюймы)
Марки: S (675) | H (675)
Чистовая обработка
| Артикул ANSI | Марка | SSC [дюйм] | S [дюйм] | RE [дюйм] | CW [дюйм] |
|---|---|---|---|---|---|
| CSG-4125-A | E | 1 | 0.187 | 0.063 | 0.125 |
| CSG-4187-A | E | 2 | 0.187 | 0.094 | 0.187 |
| CSG-6250-A | E | 3 | 0.250 | 0.125 | 0.250 |
| CSG-4125-T0320 | T | 1 | 0.187 | 0.063 | 0.125 |
| CSG-4187-T0320 | T | 2 | 0.187 | 0.094 | 0.187 |
| CSG-6250-T0320 | T | 3 | 0.250 | 0.125 | 0.250 |
● = Первый выбор ○ = Хороший выбор
