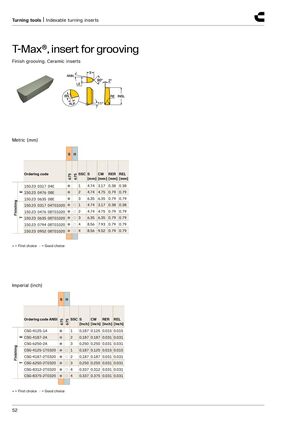

Токарный инструмент | Сменные многогранные пластины
T-Max®, пластина для нарезания канавок
Нарезание чистовых канавок. Керамические пластины
Метрическая система (мм)
Марки: S (675) | H (675)
Чистовая обработка
| Артикул | Марка | SSC [мм] | S [мм] | CW [мм] | RER [мм] | REL [мм] |
|---|---|---|---|---|---|---|
| 150.23 0317 04E | E | 1 | 4.74 | 3.17 | 0.38 | 0.38 |
| 150.23 0476 08E | E | 2 | 4.74 | 4.75 | 0.79 | 0.79 |
| 150.23 0635 08E | E | 3 | 6.35 | 6.35 | 0.79 | 0.79 |
| 150.23 0317 04T01020 | T | 1 | 4.74 | 3.17 | 0.38 | 0.38 |
| 150.23 0476 08T01020 | T | 2 | 4.74 | 4.75 | 0.79 | 0.79 |
| 150.23 0635 08T01020 | T | 3 | 6.35 | 6.35 | 0.79 | 0.79 |
| 150.23 0794 08T01020 | T | 4 | 8.56 | 7.93 | 0.79 | 0.79 |
| 150.23 0952 08T01020 | T | 4 | 8.56 | 9.52 | 0.79 | 0.79 |
● = Первый выбор ○ = Хороший выбор
Дюймовая система (дюймы)
Марки: S (675) | H (675)
Чистовая обработка
| Артикул ANSI | Марка | SSC [дюйм] | S [дюйм] | CW [дюйм] | RER [дюйм] | REL [дюйм] |
|---|---|---|---|---|---|---|
| CSG-4125-1A | E | 1 | 0.187 | 0.125 | 0.015 | 0.015 |
| CSG-4187-2A | E | 2 | 0.187 | 0.187 | 0.031 | 0.031 |
| CSG-6250-2A | E | 3 | 0.250 | 0.250 | 0.031 | 0.031 |
| CSG-4125-1T0320 | T | 1 | 0.187 | 0.125 | 0.015 | 0.015 |
| CSG-4187-2T0320 | T | 2 | 0.187 | 0.187 | 0.031 | 0.031 |
| CSG-6250-2T0320 | T | 3 | 0.250 | 0.250 | 0.031 | 0.031 |
| CSG-8312-2T0320 | T | 4 | 0.337 | 0.312 | 0.031 | 0.031 |
| CSG-8375-2T0320 | T | 4 | 0.337 | 0.375 | 0.031 | 0.031 |
● = Первый выбор ○ = Хороший выбор
