Общая информация | Информация о подаче охлаждающей жидкости

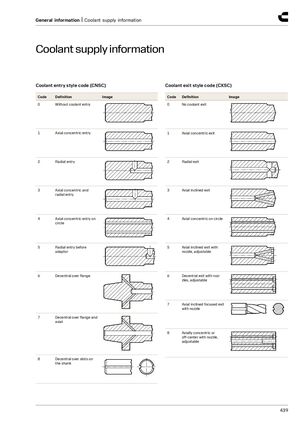

Информация о подаче охлаждающей жидкости
Код стиля входа охлаждающей жидкости (CNSC)
| Код | Определение |
|---|---|
| 0 | Без входа охлаждающей жидкости |
| 1 | Аксиальный концентрический вход |
| 2 | Радиальный вход |
| 3 | Аксиальный концентрический и радиальный вход |
| 4 | Аксиальный концентрический вход по окружности |
| 5 | Радиальный вход перед переходником |
| 6 | Децентральный вход через фланец |
| 7 | Децентральный вход через фланец и аксиальный |
| 8 | Децентральный вход через пазы на хвостовике |
Код стиля выхода охлаждающей жидкости (CXSC)
| Код | Определение |
|---|---|
| 0 | Без выхода охлаждающей жидкости |
| 1 | Аксиальный концентрический выход |
| 2 | Радиальный выход |
| 3 | Аксиальный наклонный выход |
| 4 | Аксиальный концентрический выход по окружности |
| 5 | Аксиальный наклонный выход с регулируемым соплом |
| 6 | Децентральный выход с регулируемыми соплами |
| 7 | Аксиальный наклонный сфокусированный выход с соплом |
| 8 | Аксиально концентрический или децентральный выход с регулируемым соплом |
