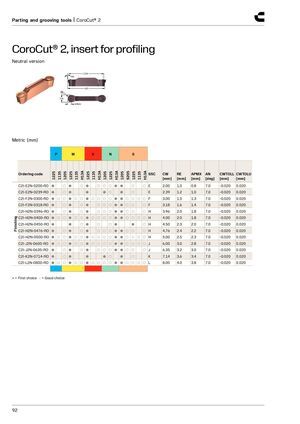

Пластины CoroCut® 2 для профилирования
Пластина для профилирования, нейтральное исполнение
Чистовая обработка
| Артикул | Применение | SSC [мм] | CW [мм] | RE [мм] | APMX [град] | AN [мм] | CWTOLL [мм] | CWTOLU [мм] |
|---|---|---|---|---|---|---|---|---|
| C2I-E2N-0200-RO | E | 2.00 | 1.0 | 0.8 | 7.0 | -0.020 | 0.020 | |
| C2I-E2N-0239-RO | E | 2.39 | 1.2 | 1.0 | 7.0 | -0.020 | 0.020 | |
| C2I-F2N-0300-RO | F | 3.00 | 1.5 | 1.3 | 7.0 | -0.020 | 0.020 | |
| C2I-F2N-0318-RO | F | 3.18 | 1.6 | 1.4 | 7.0 | -0.020 | 0.020 | |
| C2I-H2N-0396-RO | H | 3.96 | 2.0 | 1.8 | 7.0 | -0.020 | 0.020 | |
| C2I-H2N-0400-RO | H | 4.00 | 2.0 | 1.8 | 7.0 | -0.020 | 0.020 | |
| C2I-H2N-0450-RO | H | 4.50 | 2.3 | 2.0 | 7.0 | -0.020 | 0.020 | |
| C2I-H2N-0476-RO | H | 4.76 | 2.4 | 2.2 | 7.0 | -0.020 | 0.020 | |
| C2I-H2N-0500-RO | H | 5.00 | 2.5 | 2.3 | 7.0 | -0.020 | 0.020 | |
| C2I-J2N-0600-RO | J | 6.00 | 3.0 | 2.8 | 7.0 | -0.020 | 0.020 | |
| C2I-J2N-0635-RO | J | 6.35 | 3.2 | 3.0 | 7.0 | -0.020 | 0.020 | |
| C2I-K2N-0714-RO | K | 7.14 | 3.6 | 3.4 | 7.0 | -0.020 | 0.020 | |
| C2I-L2N-0800-RO | L | 8.00 | 4.0 | 3.8 | 7.0 | -0.020 | 0.020 |
● = Первый выбор ○ = Хороший выбор
