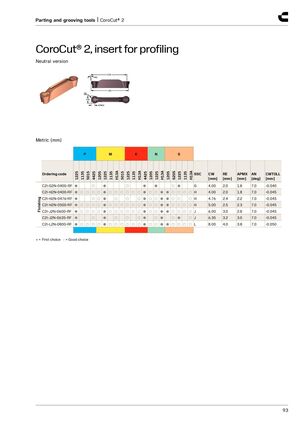

Инструменты отрезки и нарезания канавок | CoroCut® 2
CoroCut® 2, пластина для профилирования
Нейтральная версия
| Артикул | SSC | CW [мм] | RE [мм] | APMX [град] | AN [мм] | CWTOLL [мм] |
|---|---|---|---|---|---|---|
| C2I-G2N-0400-RF | G | 4.00 | 2.0 | 1.8 | 7.0 | -0.040 |
| C2I-H2N-0400-RF | H | 4.00 | 2.0 | 1.8 | 7.0 | -0.045 |
| C2I-H2N-0476-RF | H | 4.76 | 2.4 | 2.2 | 7.0 | -0.045 |
| C2I-H2N-0500-RF | H | 5.00 | 2.5 | 2.3 | 7.0 | -0.045 |
| C2I-J2N-0600-RF | J | 6.00 | 3.0 | 2.8 | 7.0 | -0.045 |
| C2I-J2N-0635-RF | J | 6.35 | 3.2 | 3.0 | 7.0 | -0.045 |
| C2I-L2N-0800-RF | L | 8.00 | 4.0 | 3.8 | 7.0 | -0.050 |
● = Первый выбор ○ = Хороший выбор
