Держатели инструмента и адаптеры | Адаптеры для токарных инструментов

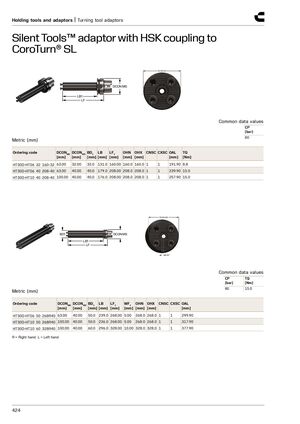

Адаптер Silent Tools™ с муфтой HSK к CoroTurn® SL
Размеры в миллиметрах
| Артикул | DCONMS [мм] | DCONWS [мм] | BD 1 [мм] | LB [мм] | LF 1 [мм] | OHN [мм] | OHX [мм] | CNSC | CXSC | OAL [мм] | TQ [Нм] |
|---|---|---|---|---|---|---|---|---|---|---|---|
| HT30D-HT06 32 160-32 | 63,00 | 32,00 | 32,0 | 131,0 | 160,00 | 160,0 | 160,0 | 1 | 1 | 191,90 | 8,8 |
| HT30D-HT06 40 208-40 | 63,00 | 40,00 | 40,0 | 179,0 | 208,00 | 208,0 | 208,0 | 1 | 1 | 239,90 | 15,0 |
| HT30D-HT10 40 208-40 | 100,00 | 40,00 | 40,0 | 176,0 | 208,00 | 208,0 | 208,0 | 1 | 1 | 257,90 | 15,0 |
Общие характеристики: CP [бар] = 80
Адаптер Silent Tools™ с муфтой HSK к CoroTurn® SL
| Артикул | DCONMS [мм] | DCONWS [мм] | BD 1 [мм] | LB [мм] | LF 1 [мм] | WF 1 [мм] | OHN [мм] | OHX [мм] | CNSC | CXSC | OAL [мм] |
|---|---|---|---|---|---|---|---|---|---|---|---|
| HT30D-HT06 50 268R40 | 63,00 | 40,00 | 50,0 | 239,0 | 268,00 | 5,00 | 268,0 | 268,0 | 1 | 1 | 299,90 |
| HT30D-HT10 50 268R40 | 100,00 | 40,00 | 50,0 | 236,0 | 268,00 | 5,00 | 268,0 | 268,0 | 1 | 1 | 317,90 |
| HT30D-HT10 60 328R40 | 100,00 | 40,00 | 60,0 | 296,0 | 328,00 | 10,00 | 328,0 | 328,0 | 1 | 1 | 377,90 |
Р = Правосторонний, Л = Левосторонний
Общие характеристики: CP [бар] = 80, TQ [Нм] = 15,0
