Инструменты для сверления | Сверла со сменными пластинами

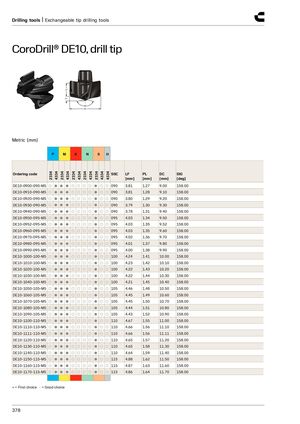

CoroDrill® DE10, пластина сверла
| Код заказа | Материалы | SSC | LF [мм] | PL [мм] | DC [мм] | SIG [град] |
|---|---|---|---|---|---|---|
| DE10-0900-090-M5 | P●M●K●N●S●H● | 090 | 3.81 | 1.27 | 9.00 | 158.00 |
| DE10-0910-090-M5 | P●M●K●N●S●H● | 090 | 3.81 | 1.28 | 9.10 | 158.00 |
| DE10-0920-090-M5 | P●M●K●N●S●H● | 090 | 3.80 | 1.29 | 9.20 | 158.00 |
| DE10-0930-090-M5 | P●M●K●N●S●H● | 090 | 3.79 | 1.30 | 9.30 | 158.00 |
| DE10-0940-090-M5 | P●M●K●N●S●H● | 090 | 3.78 | 1.31 | 9.40 | 158.00 |
| DE10-0950-095-M5 | P●M●K●N●S●H● | 095 | 4.03 | 1.34 | 9.50 | 158.00 |
| DE10-0952-095-M5 | P●M●K●N●S●H● | 095 | 4.03 | 1.35 | 9.52 | 158.00 |
| DE10-0960-095-M5 | P●M●K●N●S●H● | 095 | 4.03 | 1.35 | 9.60 | 158.00 |
| DE10-0970-095-M5 | P●M●K●N●S●H● | 095 | 4.02 | 1.36 | 9.70 | 158.00 |
| DE10-0980-095-M5 | P●M●K●N●S●H● | 095 | 4.01 | 1.37 | 9.80 | 158.00 |
| DE10-0990-095-M5 | P●M●K●N●S●H● | 095 | 4.00 | 1.38 | 9.90 | 158.00 |
| DE10-1000-100-M5 | P●M●K●N●S●H● | 100 | 4.24 | 1.41 | 10.00 | 158.00 |
| DE10-1010-100-M5 | P●M●K●N●S●H● | 100 | 4.23 | 1.42 | 10.10 | 158.00 |
| DE10-1020-100-M5 | P●M●K●N●S●H● | 100 | 4.22 | 1.43 | 10.20 | 158.00 |
| DE10-1030-100-M5 | P●M●K●N●S●H● | 100 | 4.22 | 1.44 | 10.30 | 158.00 |
| DE10-1040-100-M5 | P●M●K●N●S●H● | 100 | 4.21 | 1.45 | 10.40 | 158.00 |
| DE10-1050-105-M5 | P●M●K●N●S●H● | 105 | 4.46 | 1.48 | 10.50 | 158.00 |
| DE10-1060-105-M5 | P●M●K●N●S●H● | 105 | 4.45 | 1.49 | 10.60 | 158.00 |
| DE10-1070-105-M5 | P●M●K●N●S●H● | 105 | 4.45 | 1.50 | 10.70 | 158.00 |
| DE10-1080-105-M5 | P●M●K●N●S●H● | 105 | 4.44 | 1.51 | 10.80 | 158.00 |
| DE10-1090-105-M5 | P●M●K●N●S●H● | 105 | 4.43 | 1.52 | 10.90 | 158.00 |
| DE10-1100-110-M5 | P●M●K●N●S●H● | 110 | 4.67 | 1.55 | 11.00 | 158.00 |
| DE10-1110-110-M5 | P●M●K●N●S●H● | 110 | 4.66 | 1.56 | 11.10 | 158.00 |
| DE10-1111-110-M5 | P●M●K●N●S●H● | 110 | 4.66 | 1.56 | 11.11 | 158.00 |
| DE10-1120-110-M5 | P●M●K●N●S●H● | 110 | 4.65 | 1.57 | 11.20 | 158.00 |
| DE10-1130-110-M5 | P●M●K●N●S●H● | 110 | 4.65 | 1.58 | 11.30 | 158.00 |
| DE10-1140-110-M5 | P●M●K●N●S●H● | 110 | 4.64 | 1.59 | 11.40 | 158.00 |
| DE10-1150-115-M5 | P●M●K●N●S●H● | 115 | 4.88 | 1.62 | 11.50 | 158.00 |
| DE10-1160-115-M5 | P●M●K●N●S●H● | 115 | 4.87 | 1.63 | 11.60 | 158.00 |
| DE10-1170-115-M5 | P●M●K●N●S●H● | 115 | 4.86 | 1.64 | 11.70 | 158.00 |
● — первый выбор ○ — хороший выбор
