Инструменты для сверления | Сверла со сменными пластинами

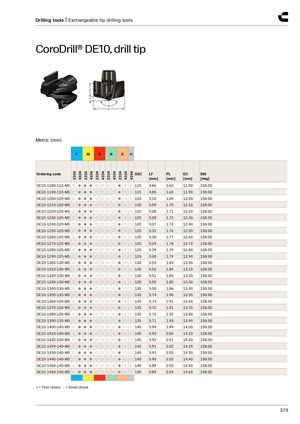

CoroDrill® DE10, пластина сверла
| Код заказа | Материалы | SSC | LF [мм] | PL [мм] | DC [мм] | SIG [град] |
|---|---|---|---|---|---|---|
| DE10-1180-115-M5 | P●M●K●N●S●H● | 115 | 4.86 | 1.65 | 11.80 | 158.00 |
| DE10-1190-115-M5 | P●M●K●N●S●H● | 115 | 4.85 | 1.65 | 11.90 | 158.00 |
| DE10-1200-120-M5 | P●M●K●N●S●H● | 120 | 5.10 | 1.69 | 12.00 | 158.00 |
| DE10-1210-120-M5 | P●M●K●N●S●H● | 120 | 5.09 | 1.70 | 12.10 | 158.00 |
| DE10-1220-120-M5 | P●M●K●N●S●H● | 120 | 5.08 | 1.71 | 12.20 | 158.00 |
| DE10-1230-120-M5 | P●M●K●N●S●H● | 120 | 5.08 | 1.72 | 12.30 | 158.00 |
| DE10-1240-120-M5 | P●M●K●N●S●H● | 120 | 5.07 | 1.72 | 12.40 | 158.00 |
| DE10-1250-125-M5 | P●M●K●N●S●H● | 125 | 5.31 | 1.76 | 12.50 | 158.00 |
| DE10-1260-125-M5 | P●M●K●N●S●H● | 125 | 5.30 | 1.77 | 12.60 | 158.00 |
| DE10-1270-125-M5 | P●M●K●N●S●H● | 125 | 5.29 | 1.78 | 12.70 | 158.00 |
| DE10-1280-125-M5 | P●M●K●N●S●H● | 125 | 5.29 | 1.79 | 12.80 | 158.00 |
| DE10-1290-125-M5 | P●M●K●N●S●H● | 125 | 5.28 | 1.79 | 12.90 | 158.00 |
| DE10-1300-130-M5 | P●M●K●N●S●H● | 130 | 5.53 | 1.83 | 13.00 | 158.00 |
| DE10-1310-130-M5 | P●M●K●N●S●H● | 130 | 5.52 | 1.84 | 13.10 | 158.00 |
| DE10-1320-130-M5 | P●M●K●N●S●H● | 130 | 5.51 | 1.85 | 13.20 | 158.00 |
| DE10-1330-130-M5 | P●M●K●N●S●H● | 130 | 5.50 | 1.85 | 13.30 | 158.00 |
| DE10-1340-130-M5 | P●M●K●N●S●H● | 130 | 5.50 | 1.86 | 13.40 | 158.00 |
| DE10-1350-135-M5 | P●M●K●N●S●H● | 135 | 5.74 | 1.90 | 13.50 | 158.00 |
| DE10-1360-135-M5 | P●M●K●N●S●H● | 135 | 5.73 | 1.91 | 13.60 | 158.00 |
| DE10-1370-135-M5 | P●M●K●N●S●H● | 135 | 5.72 | 1.91 | 13.70 | 158.00 |
| DE10-1380-135-M5 | P●M●K●N●S●H● | 135 | 5.72 | 1.92 | 13.80 | 158.00 |
| DE10-1390-135-M5 | P●M●K●N●S●H● | 135 | 5.71 | 1.93 | 13.90 | 158.00 |
| DE10-1400-140-M5 | P●M●K●N●S●H● | 140 | 5.94 | 1.99 | 14.00 | 158.00 |
| DE10-1410-140-M5 | P●M●K●N●S●H● | 140 | 5.93 | 2.00 | 14.10 | 158.00 |
| DE10-1420-140-M5 | P●M●K●N●S●H● | 140 | 5.92 | 2.01 | 14.20 | 158.00 |
| DE10-1429-140-M5 | P●M●K●N●S●H● | 140 | 5.91 | 2.02 | 14.29 | 158.00 |
| DE10-1430-140-M5 | P●M●K●N●S●H● | 140 | 5.91 | 2.02 | 14.30 | 158.00 |
| DE10-1440-140-M5 | P●M●K●N●S●H● | 140 | 5.90 | 2.02 | 14.40 | 158.00 |
| DE10-1450-140-M5 | P●M●K●N●S●H● | 140 | 5.89 | 2.03 | 14.50 | 158.00 |
| DE10-1460-140-M5 | P●M●K●N●S●H● | 140 | 5.89 | 2.04 | 14.60 | 158.00 |
● — первый выбор ○ — хороший выбор
