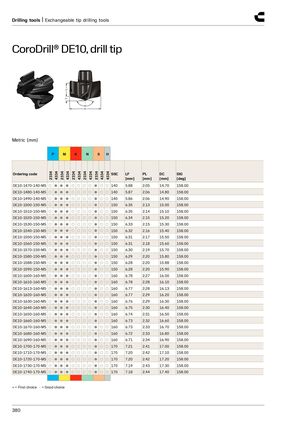

Инструменты для сверления | Сверла со сменными пластинами
CoroDrill® DE10, пластина сверла
| Код заказа | Материалы | SSC | LF [мм] | PL [мм] | DC [мм] | SIG [град] |
|---|---|---|---|---|---|---|
| DE10-1470-140-M5 | P●M●K●N●S●H● | 140 | 5.88 | 2.05 | 14.70 | 158.00 |
| DE10-1480-140-M5 | P●M●K●N●S●H● | 140 | 5.87 | 2.06 | 14.80 | 158.00 |
| DE10-1490-140-M5 | P●M●K●N●S●H● | 140 | 5.86 | 2.06 | 14.90 | 158.00 |
| DE10-1500-150-M5 | P●M●K●N●S●H● | 150 | 6.35 | 2.13 | 15.00 | 158.00 |
| DE10-1510-150-M5 | P●M●K●N●S●H● | 150 | 6.35 | 2.14 | 15.10 | 158.00 |
| DE10-1520-150-M5 | P●M●K●N●S●H● | 150 | 6.34 | 2.15 | 15.20 | 158.00 |
| DE10-1530-150-M5 | P●M●K●N●S●H● | 150 | 6.33 | 2.15 | 15.30 | 158.00 |
| DE10-1540-150-M5 | P●M●K●N●S●H● | 150 | 6.32 | 2.16 | 15.40 | 158.00 |
| DE10-1550-150-M5 | P●M●K●N●S●H● | 150 | 6.31 | 2.17 | 15.50 | 158.00 |
| DE10-1560-150-M5 | P●M●K●N●S●H● | 150 | 6.31 | 2.18 | 15.60 | 158.00 |
| DE10-1570-150-M5 | P●M●K●N●S●H● | 150 | 6.30 | 2.19 | 15.70 | 158.00 |
| DE10-1580-150-M5 | P●M●K●N●S●H● | 150 | 6.29 | 2.20 | 15.80 | 158.00 |
| DE10-1588-150-M5 | P●M●K●N●S●H● | 150 | 6.28 | 2.20 | 15.88 | 158.00 |
| DE10-1590-150-M5 | P●M●K●N●S●H● | 150 | 6.28 | 2.20 | 15.90 | 158.00 |
| DE10-1600-160-M5 | P●M●K●N●S●H● | 160 | 6.78 | 2.27 | 16.00 | 158.00 |
| DE10-1610-160-M5 | P●M●K●N●S●H● | 160 | 6.78 | 2.28 | 16.10 | 158.00 |
| DE10-1613-160-M5 | P●M●K●N●S●H● | 160 | 6.77 | 2.28 | 16.13 | 158.00 |
| DE10-1620-160-M5 | P●M●K●N●S●H● | 160 | 6.77 | 2.29 | 16.20 | 158.00 |
| DE10-1630-160-M5 | P●M●K●N●S●H● | 160 | 6.76 | 2.29 | 16.30 | 158.00 |
| DE10-1640-160-M5 | P●M●K●N●S●H● | 160 | 6.75 | 2.30 | 16.40 | 158.00 |
| DE10-1650-160-M5 | P●M●K●N●S●H● | 160 | 6.74 | 2.31 | 16.50 | 158.00 |
| DE10-1660-160-M5 | P●M●K●N●S●H● | 160 | 6.73 | 2.32 | 16.60 | 158.00 |
| DE10-1670-160-M5 | P●M●K●N●S●H● | 160 | 6.73 | 2.33 | 16.70 | 158.00 |
| DE10-1680-160-M5 | P●M●K●N●S●H● | 160 | 6.72 | 2.33 | 16.80 | 158.00 |
| DE10-1690-160-M5 | P●M●K●N●S●H● | 160 | 6.71 | 2.34 | 16.90 | 158.00 |
| DE10-1700-170-M5 | P●M●K●N●S●H● | 170 | 7.21 | 2.41 | 17.00 | 158.00 |
| DE10-1710-170-M5 | P●M●K●N●S●H● | 170 | 7.20 | 2.42 | 17.10 | 158.00 |
| DE10-1720-170-M5 | P●M●K●N●S●H● | 170 | 7.20 | 2.42 | 17.20 | 158.00 |
| DE10-1730-170-M5 | P●M●K●N●S●H● | 170 | 7.19 | 2.43 | 17.30 | 158.00 |
| DE10-1740-170-M5 | P●M●K●N●S●H● | 170 | 7.18 | 2.44 | 17.40 | 158.00 |
● — первый выбор ○ — хороший выбор
