Инструменты для сверления | Сверла со сменными пластинами

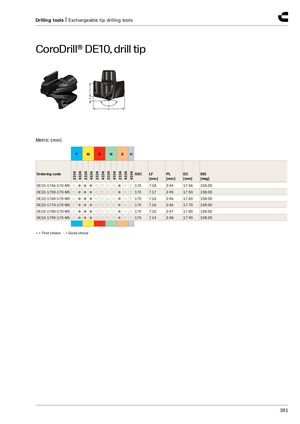

CoroDrill® DE10, пластина сверла
| Код заказа | Материалы | SSC | LF [мм] | PL [мм] | DC [мм] | SIG [град] |
|---|---|---|---|---|---|---|
| DE10-1746-170-M5 | P●M●K●N●S●H● | 170 | 7.18 | 2.44 | 17.46 | 158.00 |
| DE10-1750-170-M5 | P●M●K●N●S●H● | 170 | 7.17 | 2.45 | 17.50 | 158.00 |
| DE10-1760-170-M5 | P●M●K●N●S●H● | 170 | 7.16 | 2.46 | 17.60 | 158.00 |
| DE10-1770-170-M5 | P●M●K●N●S●H● | 170 | 7.16 | 2.46 | 17.70 | 158.00 |
| DE10-1780-170-M5 | P●M●K●N●S●H● | 170 | 7.15 | 2.47 | 17.80 | 158.00 |
| DE10-1790-170-M5 | P●M●K●N●S●H● | 170 | 7.14 | 2.48 | 17.90 | 158.00 |
● — первый выбор ○ — хороший выбор
