Инструменты расточки | Внутренние инструменты расточки

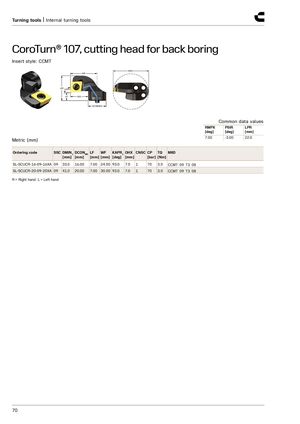

CoroTurn® 107, режущая головка для проходного растачивания
Пластина стиля: CCMT
| Общие значения параметров | ||
|---|---|---|
| RMPX [градус] | PSIR [градус] | LPR [мм] |
| 7.00 | -3.00 | 22.0 |
Метрическая система (мм)
| Артикул заказа | SSC | DMIN 1 [мм] | DCONMS [мм] | LF [мм] | WF [мм] | KAPR 1 [градус] | OHX [мм] | CNSC [бар] | CP | TQ [Нм] | MIID | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SL-SCUCR-16-09-16XA | 09 | 33.0 | 16.00 | 7.00 | 24.00 | 93.0 | — | 7.0 | 1 | 70 | 3.0 | CCMT 09 T3 08 |
| SL-SCUCR-20-09-20XA | 09 | 41.0 | 20.00 | 7.00 | 30.00 | 93.0 | — | 7.0 | 1 | 70 | 3.0 | CCMT 09 T3 08 |
П = правое вращение, Л = левое вращение
