Инструменты расточки | Внутренние инструменты расточки

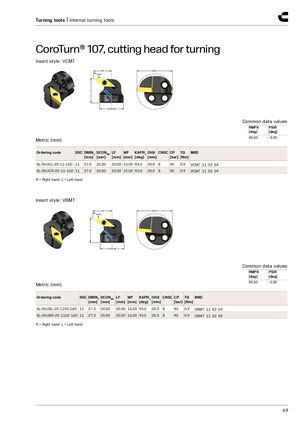

CoroTurn® 107, режущая головка для расточки
Пластина стиля: VCMT
| Общие значения параметров | |
|---|---|
| RMPX [градус] | PSIR [градус] |
| 45.00 | -3.00 |
Метрическая система (мм)
| Артикул заказа | SSC | DMIN 1 [мм] | DCONMS [мм] | LF [мм] | WF [мм] | KAPR 1 [градус] | OHX [мм] | CNSC [бар] | CP | TQ [Нм] | MIID | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SL-SVUCL-20-11-15D | 11 | 27.0 | 20.00 | 20.00 | 15.00 | 93.0 | — | 20.0 | 8 | 40 | 0.9 | VCMT 11 03 04 |
| SL-SVUCR-20-11-15D | 11 | 27.0 | 20.00 | 20.00 | 15.00 | 93.0 | — | 20.0 | 8 | 40 | 0.9 | VCMT 11 03 04 |
П = правое вращение, Л = левое вращение
Пластина стиля: VBMT
| Общие значения параметров | |
|---|---|
| RMPX [градус] | PSIR [градус] |
| 50.00 | -3.00 |
Метрическая система (мм)
| Артикул заказа | SSC | DMIN 1 [мм] | DCONMS [мм] | LF [мм] | WF [мм] | KAPR 1 [градус] | OHX [мм] | CNSC [бар] | CP | TQ [Нм] | MIID | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SL-SVUBL-20-1102-16D | 11 | 27.0 | 20.00 | 20.00 | 16.00 | 93.0 | — | 20.0 | 8 | 40 | 0.9 | VBMT 11 02 04 |
| SL-SVUBR-20-1102-16D | 11 | 27.0 | 20.00 | 20.00 | 16.00 | 93.0 | — | 20.0 | 8 | 40 | 0.9 | VBMT 11 02 04 |
П = правое вращение, Л = левое вращение
