Инструменты расточки | Внутренние инструменты расточки

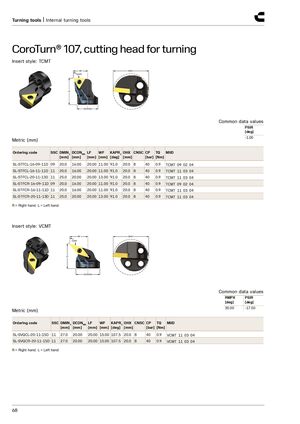

CoroTurn® 107, режущая головка для расточки
Пластина стиля: TCMT
| Общие значения параметров |
|---|
| PSIR [градус] |
| -1.00 |
Метрическая система (мм)
| Артикул заказа | SSC | DMIN 1 [мм] | DCONMS [мм] | LF [мм] | WF [мм] | KAPR 1 [градус] | OHX [мм] | CNSC [бар] | CP | TQ [Нм] | MIID | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SL-STFCL-16-09-11D | 09 | 20.0 | 16.00 | 20.00 | 11.00 | 91.0 | — | 20.0 | 8 | 40 | 0.9 | TCMT 09 02 04 |
| SL-STFCL-16-11-11D | 11 | 20.0 | 16.00 | 20.00 | 11.00 | 91.0 | — | 20.0 | 8 | 40 | 0.9 | TCMT 11 03 04 |
| SL-STFCL-20-11-13D | 11 | 25.0 | 20.00 | 20.00 | 13.00 | 91.0 | — | 20.0 | 8 | 40 | 0.9 | TCMT 11 03 04 |
| SL-STFCR-16-09-11D | 09 | 20.0 | 16.00 | 20.00 | 11.00 | 91.0 | — | 20.0 | 8 | 40 | 0.9 | TCMT 09 02 04 |
| SL-STFCR-16-11-11D | 11 | 20.0 | 16.00 | 20.00 | 11.00 | 91.0 | — | 20.0 | 8 | 40 | 0.9 | TCMT 11 03 04 |
| SL-STFCR-20-11-13D | 11 | 25.0 | 20.00 | 20.00 | 13.00 | 91.0 | — | 20.0 | 8 | 40 | 0.9 | TCMT 11 03 04 |
П = правое вращение, Л = левое вращение
Пластина стиля: VCMT
| Общие значения параметров | |
|---|---|
| RMPX [градус] | PSIR [градус] |
| 35.00 | -17.50 |
Метрическая система (мм)
| Артикул заказа | SSC | DMIN 1 [мм] | DCONMS [мм] | LF [мм] | WF [мм] | KAPR 1 [градус] | OHX [мм] | CNSC [бар] | CP | TQ [Нм] | MIID | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SL-SVQCL-20-11-15D | 11 | 27.0 | 20.00 | 20.00 | 15.00 | 107.5 | — | 20.0 | 8 | 40 | 0.9 | VCMT 11 03 04 |
| SL-SVQCR-20-11-15D | 11 | 27.0 | 20.00 | 20.00 | 15.00 | 107.5 | — | 20.0 | 8 | 40 | 0.9 | VCMT 11 03 04 |
П = правое вращение, Л = левое вращение
