Инструменты расточки | Внутренние инструменты расточки

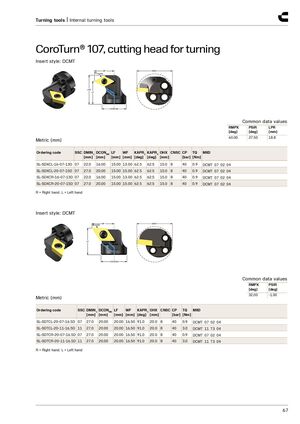

CoroTurn® 107, режущая головка для расточки
Пластина стиля: DCMT
| Общие значения параметров | ||
|---|---|---|
| RMPX [градус] | PSIR [градус] | LPR [мм] |
| 60.00 | 27.50 | 18.8 |
Метрическая система (мм)
| Артикул заказа | SSC | DMIN 1 [мм] | DCONMS [мм] | LF [мм] | WF [мм] | KAPR 1 [градус] | KAPR 2 [градус] | OHX [мм] | CNSC [бар] | CP | TQ [Нм] | MIID | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SL-SDXCL-16-07-13D | 07 | 22.0 | 16.00 | 15.00 | 13.00 | 62.5 | — | 62.5 | 15.0 | 8 | 40 | 0.9 | DCMT 07 02 04 |
| SL-SDXCL-20-07-15D | 07 | 27.0 | 20.00 | 15.00 | 15.00 | 62.5 | — | 62.5 | 15.0 | 8 | 40 | 0.9 | DCMT 07 02 04 |
| SL-SDXCR-16-07-13D | 07 | 22.0 | 16.00 | 15.00 | 13.00 | 62.5 | — | 62.5 | 15.0 | 8 | 40 | 0.9 | DCMT 07 02 04 |
| SL-SDXCR-20-07-15D | 07 | 27.0 | 20.00 | 15.00 | 15.00 | 62.5 | — | 62.5 | 15.0 | 8 | 40 | 0.9 | DCMT 07 02 04 |
П = правое вращение, Л = левое вращение
Пластина стиля: DCMT
| Общие значения параметров | |
|---|---|
| RMPX [градус] | PSIR [градус] |
| 32.00 | -1.00 |
Метрическая система (мм)
| Артикул заказа | SSC | DMIN 1 [мм] | DCONMS [мм] | LF [мм] | WF [мм] | KAPR 1 [градус] | OHX [мм] | CNSC [бар] | CP | TQ [Нм] | MIID | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SL-SDTCL-20-07-16.5D | 07 | 27.0 | 20.00 | 20.00 | 16.50 | 91.0 | — | 20.0 | 8 | 40 | 0.9 | DCMT 07 02 04 |
| SL-SDTCL-20-11-16.5D | 11 | 27.0 | 20.00 | 20.00 | 16.50 | 91.0 | — | 20.0 | 8 | 40 | 3.0 | DCMT 11 T3 04 |
| SL-SDTCR-20-07-16.5D | 07 | 27.0 | 20.00 | 20.00 | 16.50 | 91.0 | — | 20.0 | 8 | 40 | 0.9 | DCMT 07 02 04 |
| SL-SDTCR-20-11-16.5D | 11 | 27.0 | 20.00 | 20.00 | 16.50 | 91.0 | — | 20.0 | 8 | 40 | 3.0 | DCMT 11 T3 04 |
П = правое вращение, Л = левое вращение
