Токарный инструмент | Внешний токарный инструмент

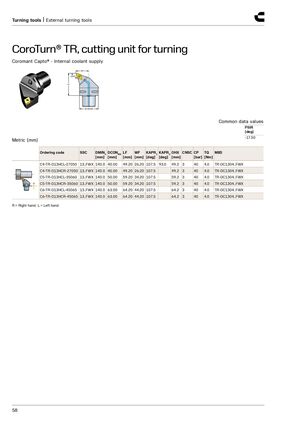

CoroTurn® TR, режущая головка для токарной обработки
Coromant Capto® - внутреннее охлаждение
Метрическая система (мм)
Общие значения данных
| PSIR [град] | |
|---|---|
| -17.50 |
| Артикул | Код сумм | DMIN 2 [мм] | DCONMS [мм] | LF [мм] | WF [мм] | KAPR 1 [град] | KAPR 2 [град] | OHX [мм] | CNSC | CP [бар] | TQ [Нм] | MIID | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| C4-TR-D13HCL-27050 | 13..FWX | 140.0 | 40.00 | 49.20 | 26.20 | 107.5 | 93.0 | 49.2 | 3 | 40 | 4.0 | TR-DC1304..FWX | |
| C4-TR-D13HCR-27050 | 13..FWX | 140.0 | 40.00 | 49.20 | 26.20 | 107.5 | 49.2 | 3 | 40 | 4.0 | TR-DC1304..FWX | ||
| C5-TR-D13HCL-35060 | 13..FWX | 140.0 | 50.00 | 59.20 | 34.20 | 107.5 | 59.2 | 3 | 40 | 4.0 | TR-DC1304..FWX | ||
| C5-TR-D13HCR-35060 | 13..FWX | 140.0 | 50.00 | 59.20 | 34.20 | 107.5 | 59.2 | 3 | 40 | 4.0 | TR-DC1304..FWX | ||
| C6-TR-D13HCL-45065 | 13..FWX | 140.0 | 63.00 | 64.20 | 44.20 | 107.5 | 64.2 | 3 | 40 | 4.0 | TR-DC1304..FWX | ||
| C6-TR-D13HCR-45065 | 13..FWX | 140.0 | 63.00 | 64.20 | 44.20 | 107.5 | 64.2 | 3 | 40 | 4.0 | TR-DC1304..FWX |
П = Правое, Л = Левое
