Цельные круглые инструменты | Инструменты фрезерования

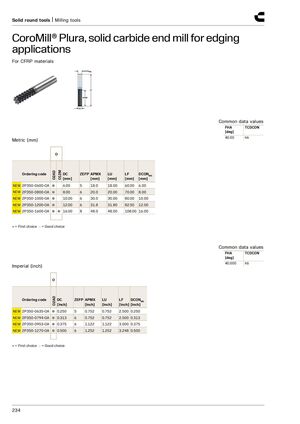

CoroMill® Plura, твердосплавная концевая фреза для обработки кромок
Для материалов CFRP
| Артикул | DC [мм] | ZEFP | APMX [мм] | LU [мм] | LF [мм] | DCONMS [мм] |
|---|---|---|---|---|---|---|
| NEW 2P350-0600-OA | 6.00 | 5 | 18.0 | 18.00 | 60.00 | 6.00 |
| NEW 2P350-0800-OA | 8.00 | 6 | 20.0 | 20.00 | 70.00 | 8.00 |
| NEW 2P350-1000-OA | 10.00 | 6 | 30.0 | 30.00 | 80.00 | 10.00 |
| NEW 2P350-1200-OA | 12.00 | 6 | 31.8 | 31.80 | 82.50 | 12.00 |
| NEW 2P350-1600-OA | 16.00 | 8 | 48.0 | 48.00 | 108.00 | 16.00 |
| Артикул | DC [дюйм] | ZEFP | APMX [дюйм] | LU [дюйм] | LF [дюйм] | DCONMS [дюйм] |
|---|---|---|---|---|---|---|
| NEW 2P350-0635-OA | 0.250 | 5 | 0.752 | 0.752 | 2.500 | 0.250 |
| NEW 2P350-0794-OA | 0.313 | 6 | 0.752 | 0.752 | 2.500 | 0.313 |
| NEW 2P350-0953-OA | 0.375 | 6 | 1.122 | 1.122 | 3.000 | 0.375 |
| NEW 2P350-1270-OA | 0.500 | 6 | 1.252 | 1.252 | 3.248 | 0.500 |
