Инструменты расточки | Адаптеры CoroTurn® SL

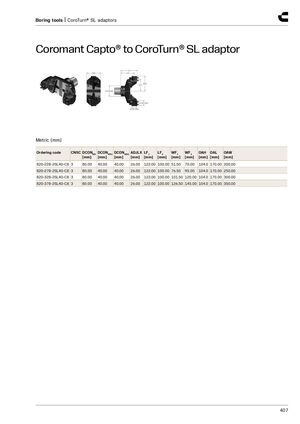

Адаптер Coromant Capto® для CoroTurn® SL
Метрические размеры (мм)
| Артикул | CNSC | DCONMS [мм] | DCONWS 1 [мм] | DCONWS 2 [мм] | ADJLX [мм] | LF 1 [мм] | LF 2 [мм] | WF 1 [мм] | WF 2 [мм] | OAH [мм] | OAL [мм] | OAW [мм] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 820-228-2SL40-C8 | 3 | 80.00 | 40.00 | 40.00 | 26.00 | 122.00 | 100.00 | 51.50 | 70.00 | 104.0 | 170.00 | 200.00 |
| 820-278-2SL40-C8 | 3 | 80.00 | 40.00 | 40.00 | 26.00 | 122.00 | 100.00 | 76.50 | 95.00 | 104.0 | 170.00 | 250.00 |
| 820-328-2SL40-C8 | 3 | 80.00 | 40.00 | 40.00 | 26.00 | 122.00 | 100.00 | 101.50 | 120.00 | 104.0 | 170.00 | 300.00 |
| 820-378-2SL40-C8 | 3 | 80.00 | 40.00 | 40.00 | 26.00 | 122.00 | 100.00 | 126.50 | 145.00 | 104.0 | 170.00 | 350.00 |
