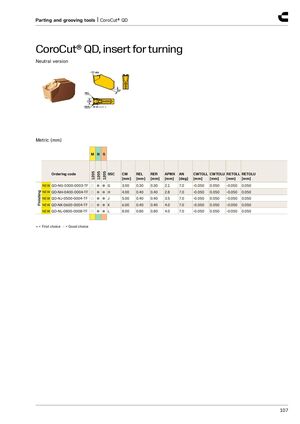

Инструменты отрезки и нарезания канавок | CoroCut® QD
CoroCut® QD, пластина для точения
Нейтральная версия. Чистовая обработка
| Артикул | SSC | CW [мм] | REL [мм] | RER [мм] | APMX [мм] | AN [град] | CWTOLL [мм] | CWTOLU [мм] | RETOLL [мм] | RETOLU [мм] |
|---|---|---|---|---|---|---|---|---|---|---|
| NEW QD-NG-0300-0003-TF | G | 3.00 | 0.30 | 0.30 | 2.1 | 7.0 | -0.050 | 0.050 | -0.050 | 0.050 |
| NEW QD-NH-0400-0004-TF | H | 4.00 | 0.40 | 0.40 | 2.8 | 7.0 | -0.050 | 0.050 | -0.050 | 0.050 |
| NEW QD-NJ-0500-0004-TF | J | 5.00 | 0.40 | 0.40 | 3.5 | 7.0 | -0.050 | 0.050 | -0.050 | 0.050 |
| NEW QD-NK-0600-0004-TF | K | 6.00 | 0.40 | 0.40 | 4.0 | 7.0 | -0.050 | 0.050 | -0.050 | 0.050 |
| NEW QD-NL-0800-0008-TF | L | 8.00 | 0.80 | 0.80 | 4.0 | 7.0 | -0.050 | 0.050 | -0.050 | 0.050 |
● = Первый выбор ○ = Хороший выбор
