Фрезерные инструменты | Плечевые фрезы

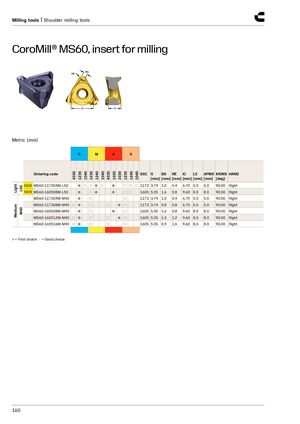

CoroMill® MS60, пластина для фрезерования
Легкий режим L50 и средний режим M40
Метрические размеры (мм)
| Артикул | Выбор | S (мм) | BS (мм) | RE (мм) | IC (мм) | LE (мм) | APMX (мм) | KRINS (град) | Направление |
|---|---|---|---|---|---|---|---|---|---|
| MS60-11T304M-L50 | ● (Первый выбор) | 3.74 | 1.0 | 0.4 | 6.70 | 5.0 | 5.0 | 90.00 | Правое вращение |
| MS60-160508M-L50 | ● (Первый выбор) | 5.35 | 1.6 | 0.8 | 9.60 | 8.0 | 8.0 | 90.00 | Правое вращение |
| MS60-11T304M-M40 | ● (Первый выбор) | 3.74 | 1.0 | 0.4 | 6.70 | 5.0 | 5.0 | 90.00 | Правое вращение |
| MS60-11T308M-M40 | ○ (Хороший выбор) | 3.74 | 0.8 | 0.8 | 6.70 | 5.0 | 5.0 | 90.00 | Правое вращение |
| MS60-160508M-M40 | ● (Первый выбор) | 5.35 | 1.6 | 0.8 | 9.60 | 8.0 | 8.0 | 90.00 | Правое вращение |
| MS60-160512M-M40 | ○ (Хороший выбор) | 5.35 | 1.3 | 1.2 | 9.60 | 8.0 | 8.0 | 90.00 | Правое вращение |
| MS60-160516M-M40 | ○ (Хороший выбор) | 5.35 | 0.9 | 1.6 | 9.60 | 8.0 | 8.0 | 90.00 | Правое вращение |
