Фрезерные инструменты | Плечевые фрезы

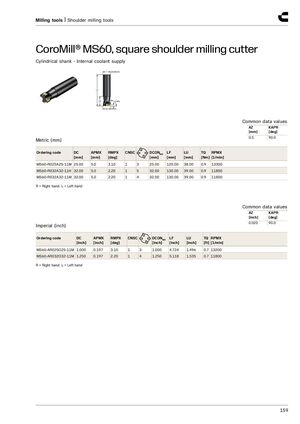

CoroMill® MS60, квадратная плечевая фреза
Цилиндрический хвостовик - внутренняя подача СОЖ
Метрические размеры (мм)
Общие значения данных: AZ = 0,5 мм, KAPR = 90,0°
| Артикул | DC (мм) | APMX (мм) | RMPX (град) | CNSC | DCONMS (мм) | LF (мм) | LU (мм) | TQ (Нм) | RPMX (об/мин) |
|---|---|---|---|---|---|---|---|---|---|
| MS60-R025A25-11M | 25.00 | 5.0 | 3.10 | 1 | 25.00 | 120.00 | 38.00 | 0.9 | 13300 |
| MS60-R032A32-11H | 32.00 | 5.0 | 2.20 | 1 | 32.00 | 130.00 | 39.00 | 0.9 | 11800 |
| MS60-R032A32-11M | 32.00 | 5.0 | 2.20 | 1 | 32.00 | 130.00 | 39.00 | 0.9 | 11800 |
Размеры в дюймах (inch)
Общие значения данных: AZ = 0,020 дюйма, KAPR = 90,0°
| Артикул | DC (дюйм) | APMX (дюйм) | RMPX (град) | CNSC | DCONMS (дюйм) | LF (дюйм) | LU (дюйм) | TQ (фунт-сила фут) | RPMX (об/мин) |
|---|---|---|---|---|---|---|---|---|---|
| MS60-AR025O25-11M | 1.000 | 0.197 | 3.10 | 1 | 1.000 | 4.724 | 1.496 | 0.7 | 13200 |
| MS60-AR032O32-11M | 1.250 | 0.197 | 2.20 | 1 | 1.250 | 5.118 | 1.535 | 0.7 | 11800 |
Р = Правое вращение, Л = Левое вращение
