Инструменты для сверления | Сверла со сменными пластинами

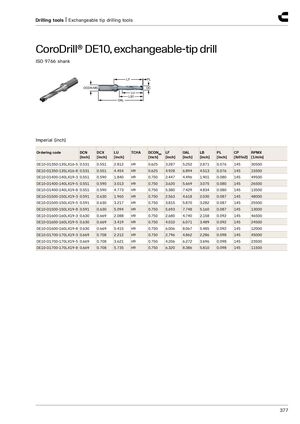

CoroDrill® DE10, сверло со сменной пластиной
ISO 9766 хвостовик
| Код заказа | DCN [дюйм] | DCX [дюйм] | LU [дюйм] | TCHA | DCONMS [дюйм] | LF [дюйм] | OAL [дюйм] | LB [дюйм] | PL [дюйм] | CP [lbf/in²] | RPMX [об/мин] |
|---|---|---|---|---|---|---|---|---|---|---|---|
| DE10-D1350-135LX16-5 | 0.531 | 0.551 | 2.812 | H9 | 0.625 | 3.287 | 5.252 | 2.871 | 0.076 | 145 | 30500 |
| DE10-D1350-135LX16-8 | 0.531 | 0.551 | 4.454 | H9 | 0.625 | 4.928 | 6.894 | 4.513 | 0.076 | 145 | 15500 |
| DE10-D1400-140LX19-3 | 0.551 | 0.590 | 1.840 | H9 | 0.750 | 2.447 | 4.496 | 1.901 | 0.080 | 145 | 49500 |
| DE10-D1400-140LX19-5 | 0.551 | 0.590 | 3.013 | H9 | 0.750 | 3.620 | 5.669 | 3.075 | 0.080 | 145 | 26500 |
| DE10-D1400-140LX19-8 | 0.551 | 0.590 | 4.773 | H9 | 0.750 | 5.380 | 7.429 | 4.834 | 0.080 | 145 | 13500 |
| DE10-D1500-150LX19-3 | 0.591 | 0.630 | 1.965 | H9 | 0.750 | 2.563 | 4.618 | 2.030 | 0.087 | 145 | 48000 |
| DE10-D1500-150LX19-5 | 0.591 | 0.630 | 3.217 | H9 | 0.750 | 3.815 | 5.870 | 3.282 | 0.087 | 145 | 25500 |
| DE10-D1500-150LX19-8 | 0.591 | 0.630 | 5.094 | H9 | 0.750 | 5.693 | 7.748 | 5.160 | 0.087 | 145 | 13000 |
| DE10-D1600-160LX19-3 | 0.630 | 0.669 | 2.088 | H9 | 0.750 | 2.680 | 4.740 | 2.158 | 0.092 | 145 | 46500 |
| DE10-D1600-160LX19-5 | 0.630 | 0.669 | 3.419 | H9 | 0.750 | 4.010 | 6.071 | 3.489 | 0.092 | 145 | 24500 |
| DE10-D1600-160LX19-8 | 0.630 | 0.669 | 5.415 | H9 | 0.750 | 6.006 | 8.067 | 5.485 | 0.092 | 145 | 12000 |
| DE10-D1700-170LX19-3 | 0.669 | 0.708 | 2.212 | H9 | 0.750 | 2.796 | 4.862 | 2.286 | 0.098 | 145 | 45000 |
| DE10-D1700-170LX19-5 | 0.669 | 0.708 | 3.621 | H9 | 0.750 | 4.206 | 6.272 | 3.696 | 0.098 | 145 | 23500 |
| DE10-D1700-170LX19-8 | 0.669 | 0.708 | 5.735 | H9 | 0.750 | 6.320 | 8.386 | 5.810 | 0.098 | 145 | 11500 |
